New DYNAPAC CC6200 VI

Compaction

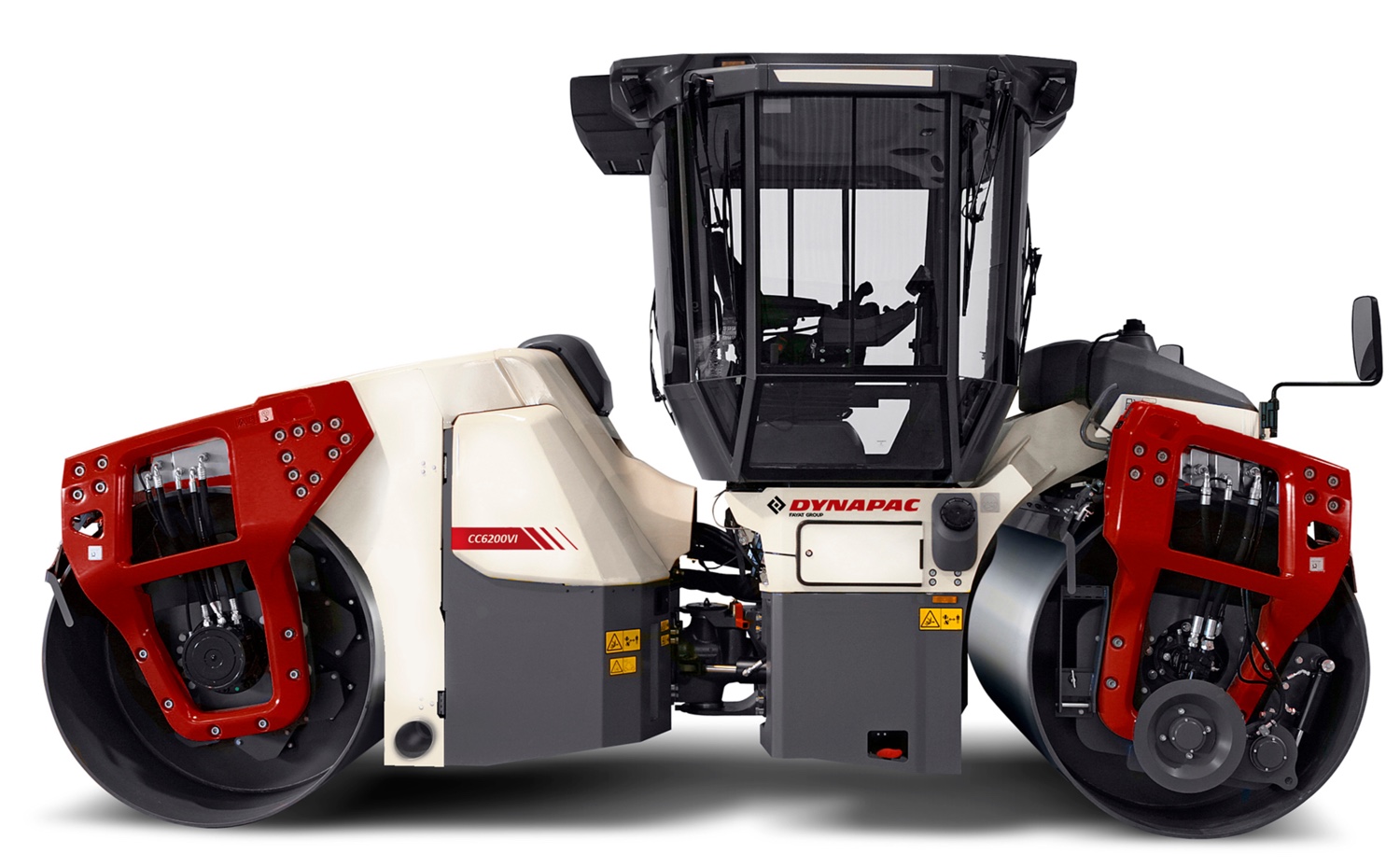

DYNAPAC CC6200 VI
REQUEST A QUOTE Click To Call: 405-945-8594

The first generation of Dynapac large asphalt rollers, the CC40, was introduced in 1964. Dynapac is now introducing the sixth generation, the CC4000 - CC6200 VI. The machines are extremely operator friendly, offering unmatched ease of operation, excellent maneuverability and highest quality compaction.

Key Features

  • Performance: Electronic Drive Control, Active front drum steering, EcoMode, Water System

  • Operator’s efficiency: Good ergonomics, Low, Easy to read instrument panel

  • Compaction Control: Impactometer, Asphalt temperature meter, Evib Compaction Meter, Dyn@lyzer

  • Total Economy: Automatic idle, High efficient eccenters, EcoMode, Dual pump vibration

  • Visibility: 1x1m View, 255 degree turnable operator station

  • Serviceability: Easy to reach daily maintenance points, Reliable sprinkler system, Lubrication free articulated joint, Dyn@Link

Click to Call: (405) 945-8594

More Info

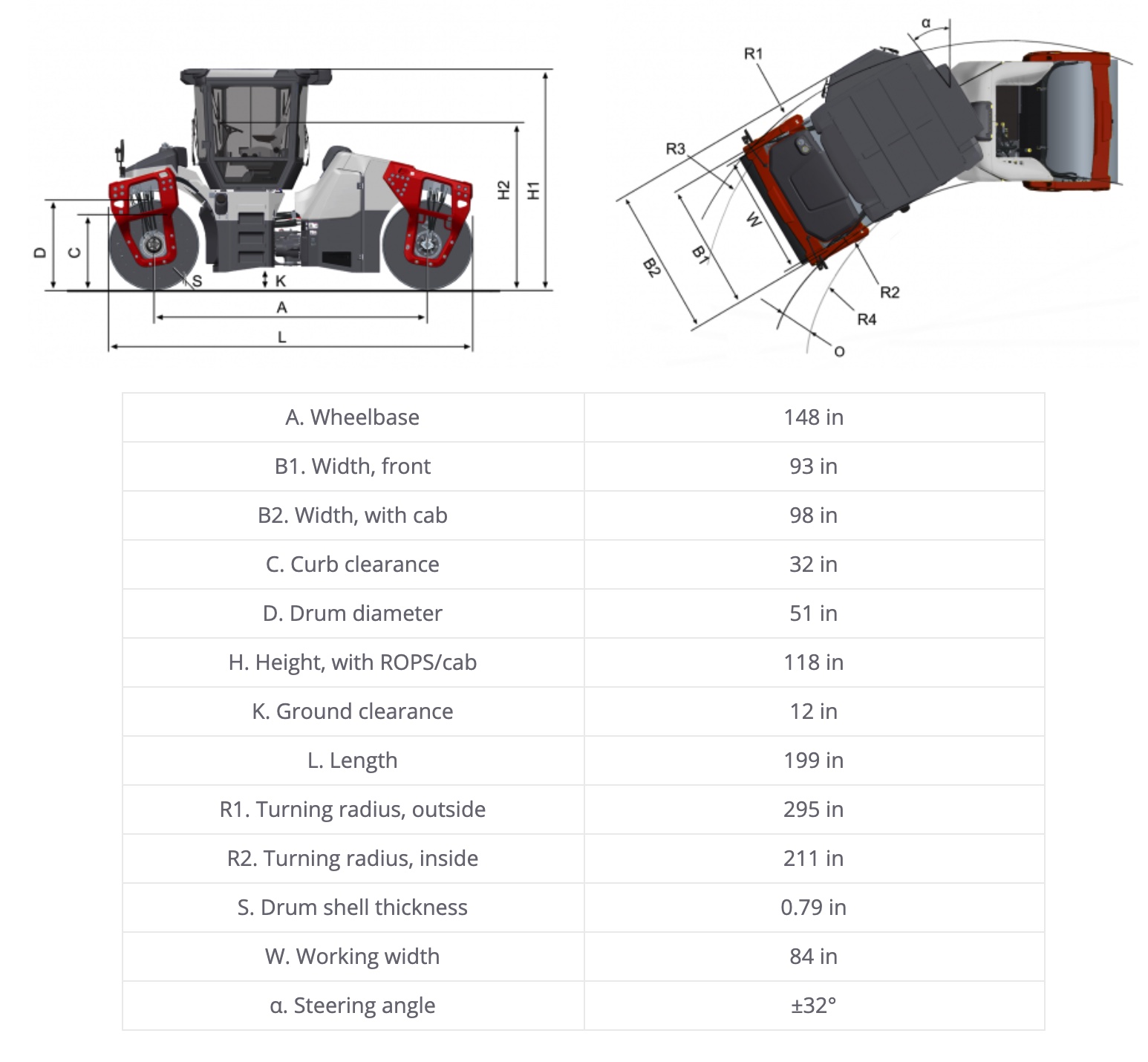

Dynapac CC6200 VI Dimensions Dynapac CC6200 VI Dimensions

Dynapac CC6200 VI Compaction Data

Dynapac CC6200 VI Soil Compaction Data

Hydraulic system

Masses
Max. operating mass 30,800 lbs
Operating mass (incl. ROPS) 27,300 lbs
Module mass (front/rear) 13,700 lbs/ 13,700 lbs

Traction
Speed range 0-7.5 mph
Vertical oscillation ±7°
Max. theoretical gradeability 32 %

Compaction
Centrifugal force (high/low amplitude) 35,300 lb/23,160 lb
Nominal amplitude (high/low) 0.031 in/0.012 in
Static linear load (front/rear) 163 pli/163 pli
Vibration frequency (high/low amplitude) 3,060 vpm/4,020 vpm
Water tank 224 gal/ (277 gal w. opt. watert.)

Engine
Manufacturer/Model Cummins QSF3.8 IV/T4f
Type Water cooled turbo Diesel with After Cooler
Rated power, SAE J1995 130 hp @ 2,200 rpm
Fuel tank capacity 48 gal
DEF tank capacity 4 gal

Alternative Engine
Manufacturer/Model
Rated power, SAE J1995
Fuel tank capacity 47.56 gal

Hydraulic system
Driving Axial piston pump with variable displacement.
Radial piston motors (2) with variable displacement.
Vibration Axial piston pumps (2) with variable displacement.
Axial piston motors (2) with constant displacement.
Steering Gear pump with constant displacement.
Service brake Hydrostatic in forward and reverse lever.
Parking/Emergency brake Failsafe multidisc brake in both drums.

History
Production start (year) 2017
Production end (year)
Note Generation VI of big asphalt rollers made a brand identity update in the late 2017 due to divestment from Atlas Copco and integration into FAYAT Construction Equipment division.
