New DYNAPAC CC5200 VI

Compaction

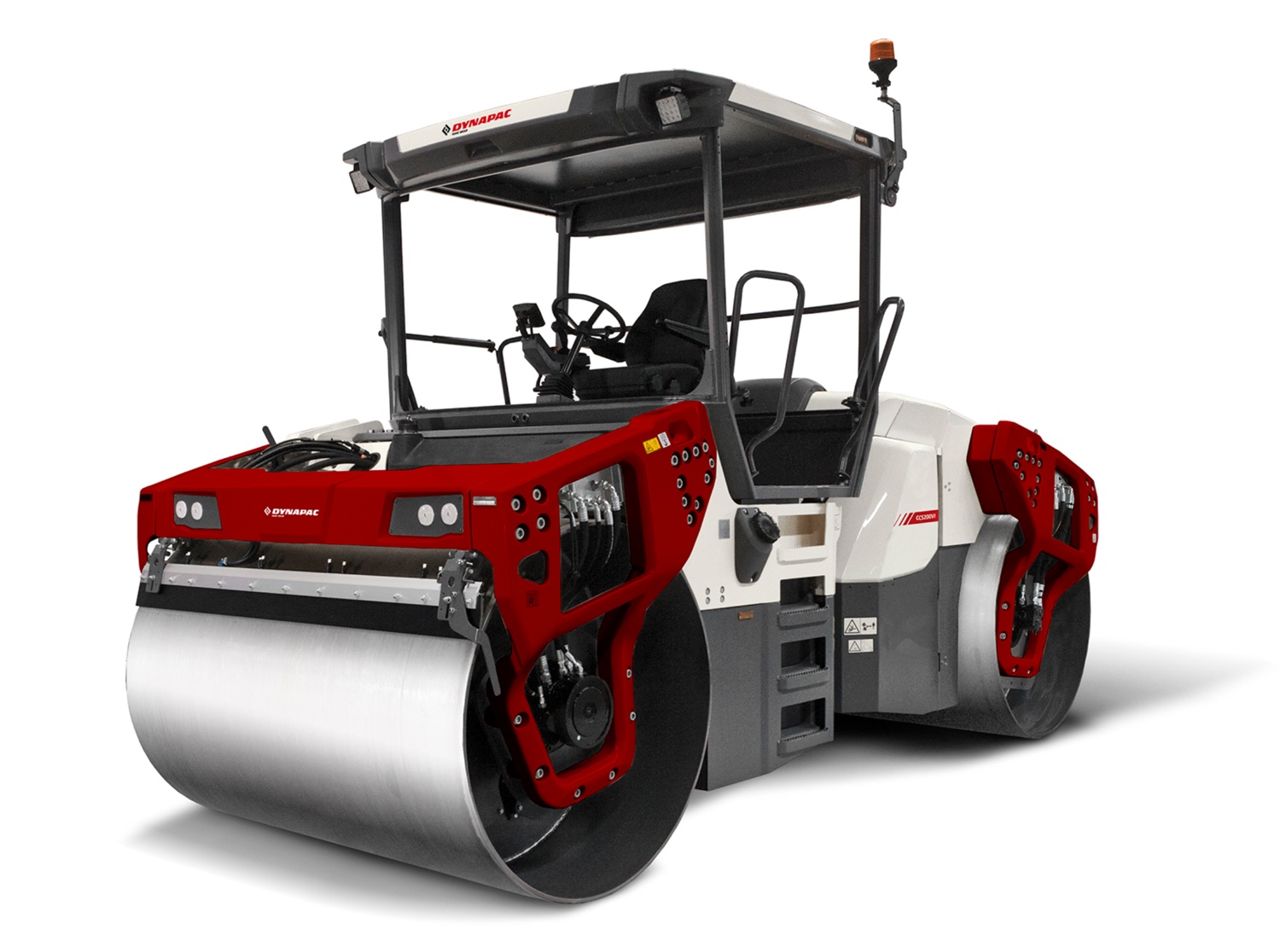

DYNAPAC CC5200 VI
REQUEST A QUOTE Click To Call: 405-945-8594

The first generation of Dynapac large asphalt rollers, the CC40, was introduced in 1964. Dynapac is now introducing the sixth generation, the CC4000 - CC6200 VI. The machines are extremely operator friendly, offering unmatched ease of operation, excellent maneuverability and highest quality compaction.

Key Features

  • Performance: Electronic Drive Control, Active front drum steering, EcoMode, Water System

  • Operator’s efficiency: Good ergonomics, Low, Easy to read instrument panel

  • Compaction Control: Impactometer, Asphalt temperature meter, Evib Compaction Meter, Dyn@lyzer

  • Total Economy: Automatic idle, High efficient eccenters, EcoMode, Dual pump vibration

  • Visibility: 1x1m View, 255 degree turnable operator station

  • Serviceability: Easy to reach daily maintenance points, Reliable sprinkler system, Lubrication free articulated joint, Dyn@Link

Click to Call: (405) 945-8594

More Info

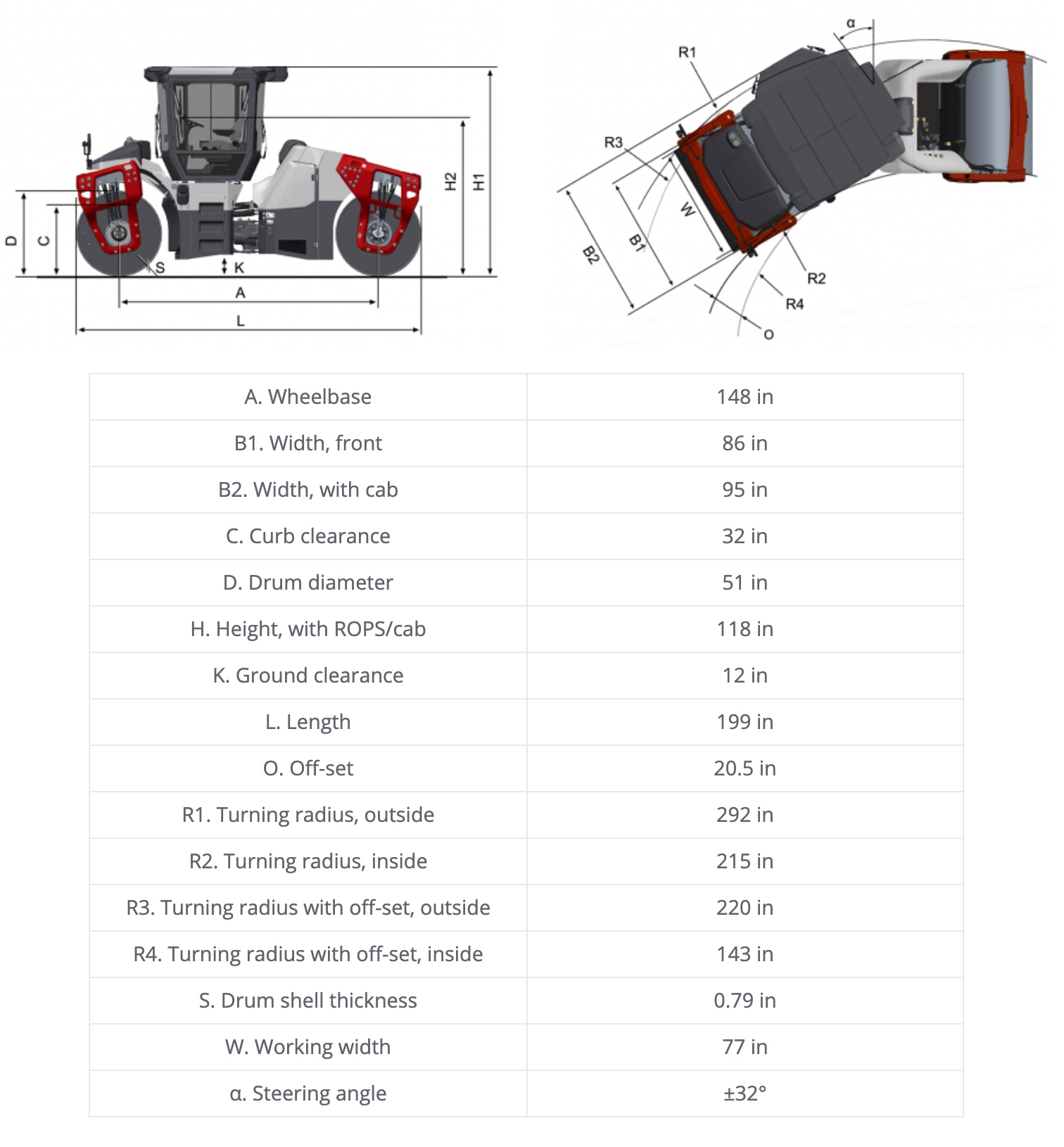

Dynapac CC5200 VI Dimensions Dynapac CC5200 VI Dimensions

Dynapac CC5200 VI Compaction Data

Dynapac CC5200 VI Soil Compaction Data

Masses
Max. operating mass 32,800 lbs
Operating mass (incl. ROPS) 26,000 lbs
Module mass (front/rear) 13,000 lbs/ 13,000 lbs

Traction
Speed range 0-7.5 mph
Vertical oscillation ±7°
Max. theoretical gradeability 34 %

Compaction
Centrifugal force (high/low amplitude) 32,370 lb/20,910 lb
Nominal amplitude (high/low) 0.031 in/0.012 in
Static linear load (front/rear) 170 pli/170 pli
Vibration frequency (high/low amplitude) 3,060 vpm/4,020 vpm
Water tank 224 gal/ (277 gal w. opt. watert.)
Water tank (front drum steering) 227 gal

Engine
Manufacturer/Model Cummins QSF3.8 IV/T4f
Type Water cooled turbo Diesel with After Cooler
Rated power, SAE J1995 97 kW (130.0 hp ) @ 2,200 rpm
Fuel tank capacity 48 gal
DEF tank capacity 4 gal

Alternative Engine
Manufacturer/Model
Type Water cooled turbo Diesel with After Cooler
Rated power, SAE J1995
Fuel tank capacity 47.56 gal

Hydraulic system
Driving Axial piston pump with variable displacement.
Radial piston motors (2) with variable displacement.
Vibration Axial piston pumps (2) with variable displacement.
Axial piston motors (2) with constant displacement.
Steering Gear pump with constant displacement.
Service brake Hydrostatic in forward and reverse lever.
Parking/Emergency brake Failsafe multidisc brake in both drums.
