These machines and their variants, are the fifth generation of Dynapac CA single drum vibratory rollers. With their state-of-the-art designs and unique features, they represent yet another example of Dynapac’s innovative thinking.


  • OPTIMIZED PARAMETERS: Provide superior compaction performance.
  • ACTIVE BOUNCING CONTROL: Prevents misuse to the machine and over-compaction.
  • CROSS-MOUNTED ENGINE: A revolution in serviceability.
  • LOW NOISE AND LOW FUEL CONSUMPTION: Sustainability and working environment in focus.
  • MISSION CONTROL: Puts you in full control of the entire compaction process.
Click to Call: (405) 945-8594

More Info

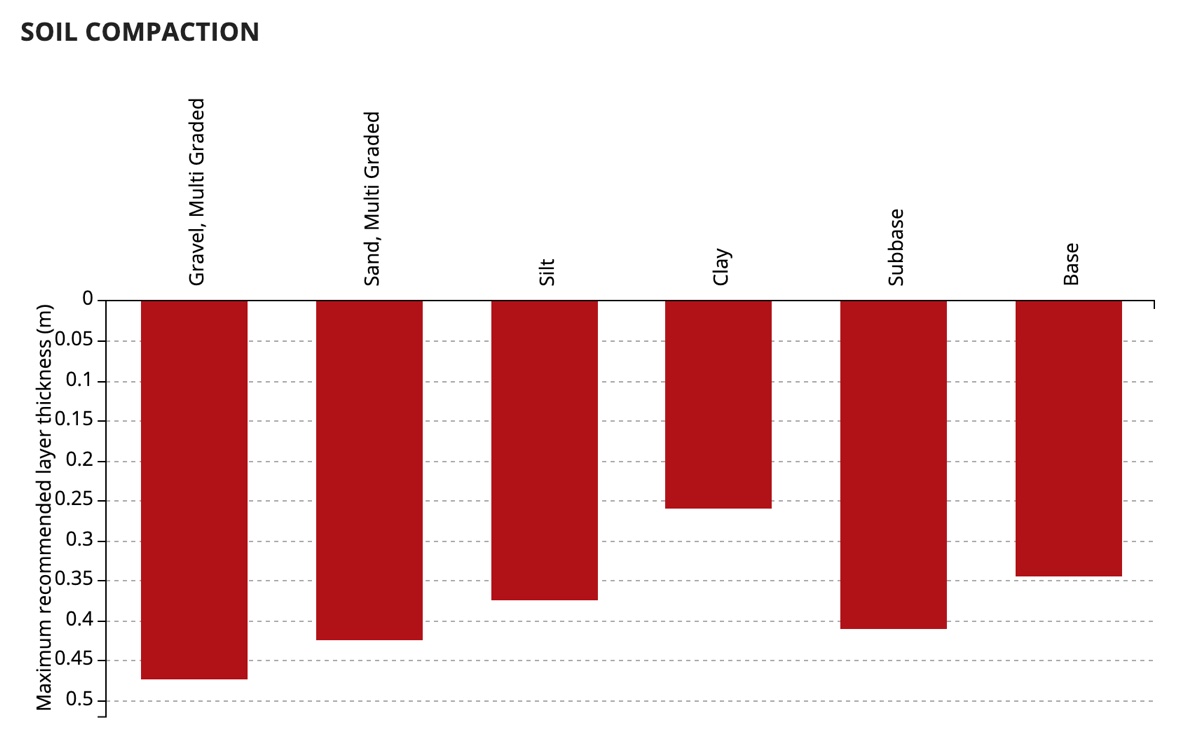

Dynapac CA1500D Soil Compaction

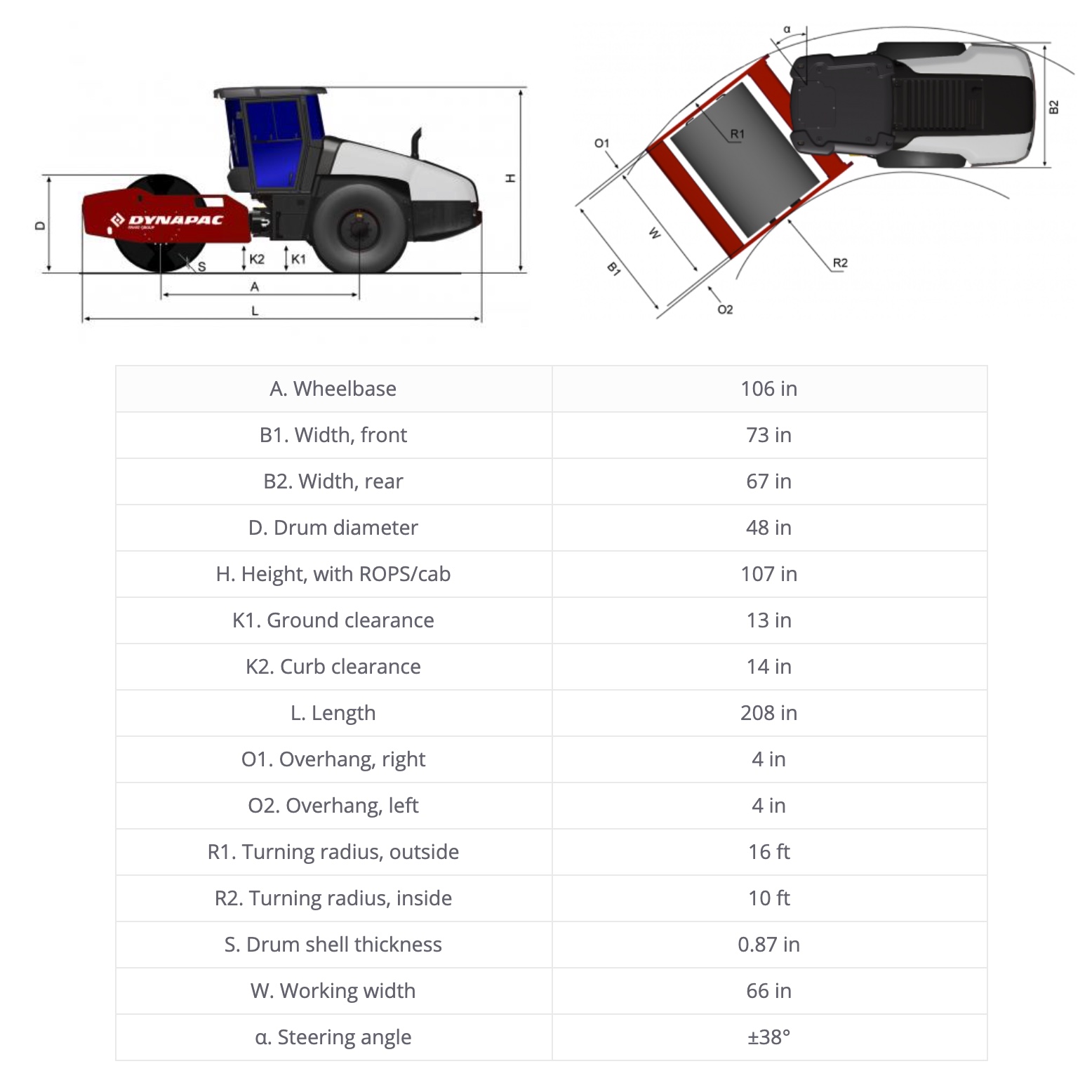

Dynapac CA1500D Dimensions

Dynapac CA1500D Dimensions


Operating mass (incl. ROPS) 15,500 lbs
Operating mass (incl. Cab) 15,900 lbs
Module mass (front/rear) 7,750 lbs/ 7,750 lbs
Max. operating mass 18,700 lbs


Speed range 8 / 12 / 12 km/h
Tire size (8 ply) 14.9 x 24 TL
Max. theoretical gradeability 55 %
Vertical oscillation ±9°


Static linear load 118 lbs/in
Nominal amplitude (high/low) 0.071 in/ 0.031 in
Vibration frequency (high/low amplitude)
SEISMIC available (values for manual mode)
1,920 vpm / 2,160 vpm
Centrifugal force (high/low amplitude) 29,900 lb/ 16,200 lb


Manufacturer/Model Deutz TD3.6/DPF (V)
Type Water cooled turbo Diesel
Rated power, ISO 14396 55 kW (75 hp) @ 2200 rpm
Fuel tank capacity 50 gal

Alternative Engine

Manufacturer/Model Cummins QSB3.3 (IIIA/T3)
Type Water cooled turbo Diesel
Rated power, ISO 14396 74 kW (100 hp) @ 2,200 rpm
Fuel tank capacity 50 gal

Alternative Engine

Manufacturer/Model Cummins QSB3.3 (IIIA/T3)
Type Water cooled turbo Diesel
Rated power, SAE J1995 82 kW (110 hp ) @ 2200 rpm

Hydraulic system

Driving Hydrostatic
Vibration Hydrostatic
Steering Hydrostatic
Service brake Hydrostatic in forward and reverse lever.
Parking/Emergency brake Failsafe multidisc brake in drum gear box and in rear axle.


dynapac seismicConventional vibratory compactors deliver a rapid succession of impacts to the soil surface at a frequency that is either pre-set at a high or low amplitude or at a frequency that is adjusted manually. Dynapac® Seismic™ does it differently. Since the drum and the soil act as one dynamic system, several benefits can be found from the system’s natural frequency.

At the natural frequency, the drum amplitude is enhanced significantly, since energy is automatically fed to the system at exactly the right time. This, in turn, maximizes the contact force between the drum and the ground, yielding maximized compaction and energy efficiency. The best compaction parameters guarantee an optimal output. A machine that can determine soil characteristics and then automatically interact with them, will make the world of difference in compaction results. Let the machine feel the soil and cooperate with it.

Equipment (Standard and Options)

  • 24V outlet socket, operator's platform
  • AntiSpin drive system
  • Automatic vibration control
  • Back up alarm
  • Brake release
  • Cab or ROPS/FOPS
  • Cross Mounted Engine
  • Combi cooler with Hydraulicly driven fan
  • Display: Engine temp, Fuel level, Hydr. temp, Speedometer,Tachometer, Voltage
  • ECO mode
  • Emergency stop
  • Filler cap inside lockable hood
  • Hydraulic checkpoints
  • Parking brake
  • Rear axle, No-Spin
  • Seismic with Compaction Meter including Active Bouncing Control
  • Shock mounted platform
  • Steering wheel, adjustable
  • Suspension seat, swivelling
  • Storage Compartment
  • Vandal cover
  • Warning lights: Air cleaner, Brake, Clogged hyd. fluid filter, Engine oil pressure/ temp, Hyd oil temp, Low charge, Low fuel
  • 1m X 1m Visibility
  • Zero spill oil & coolant change
