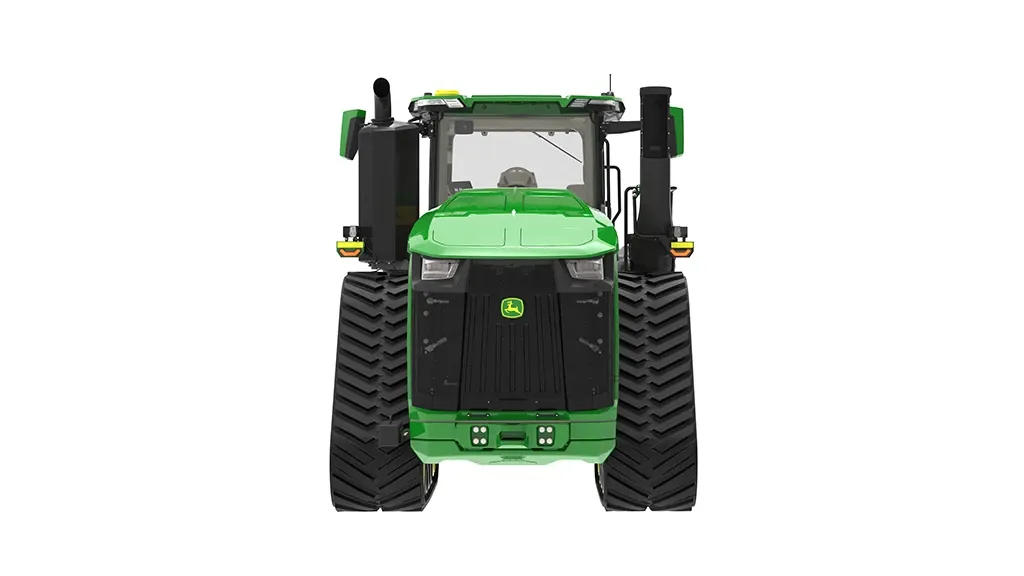

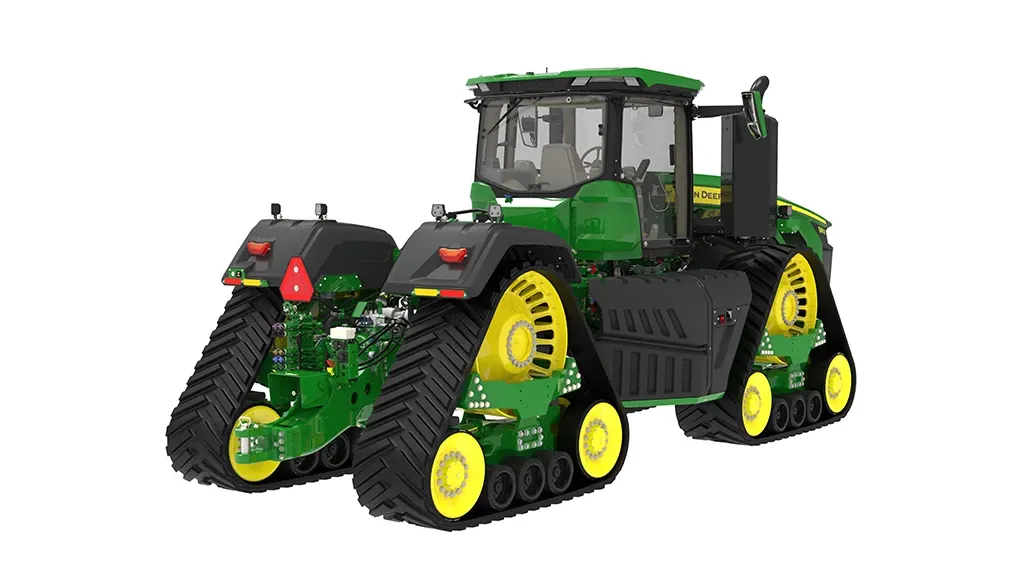

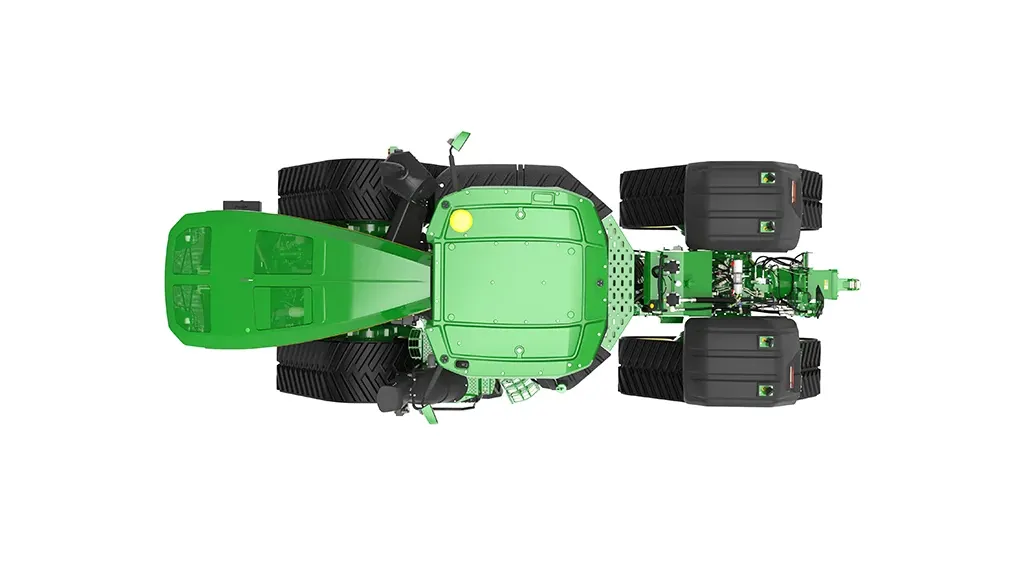

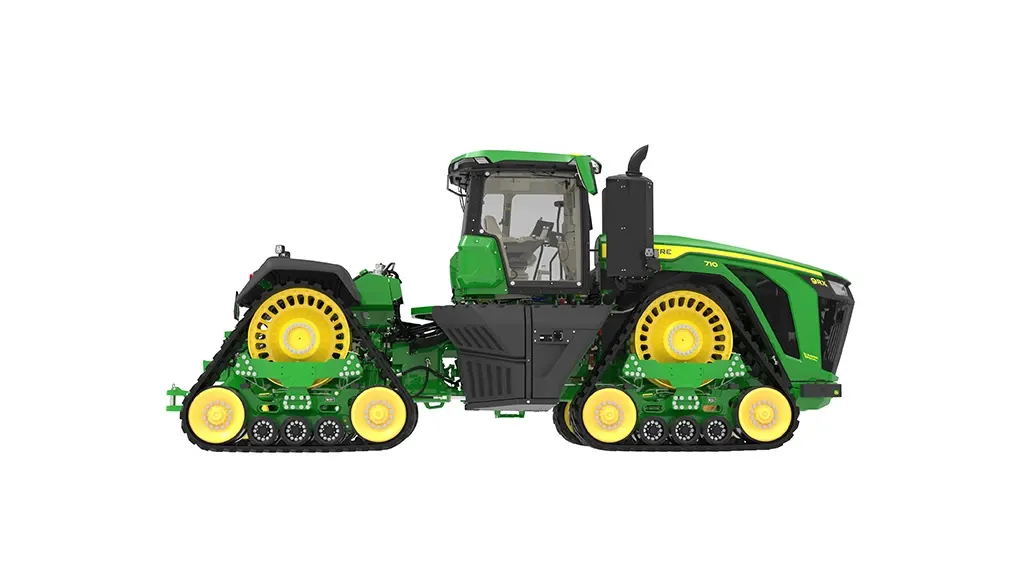

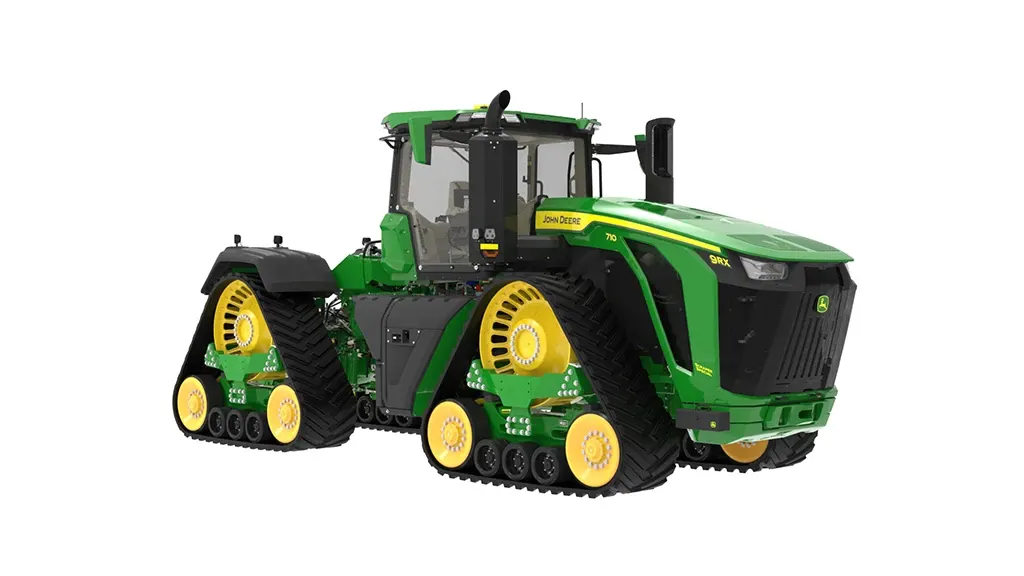

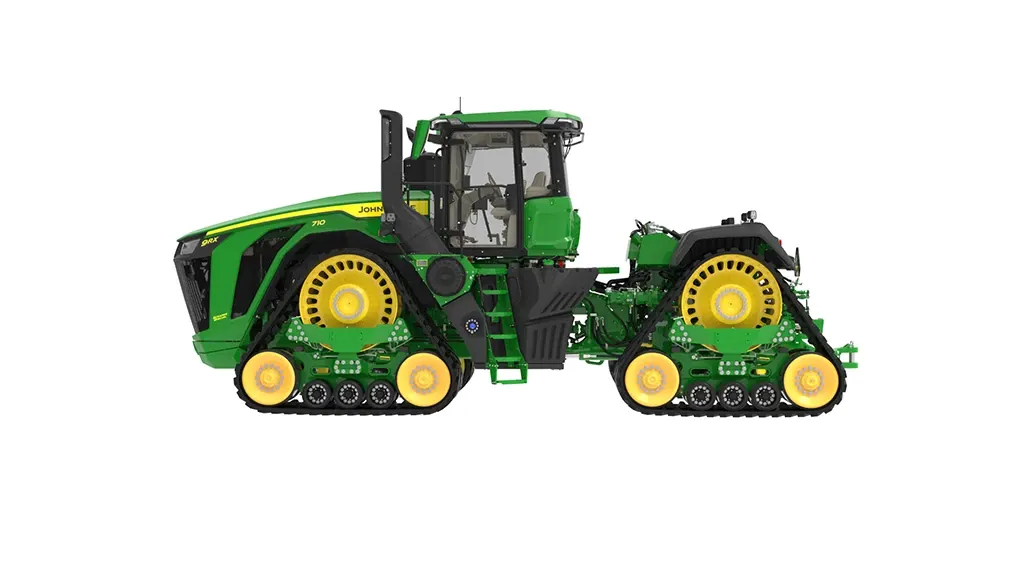

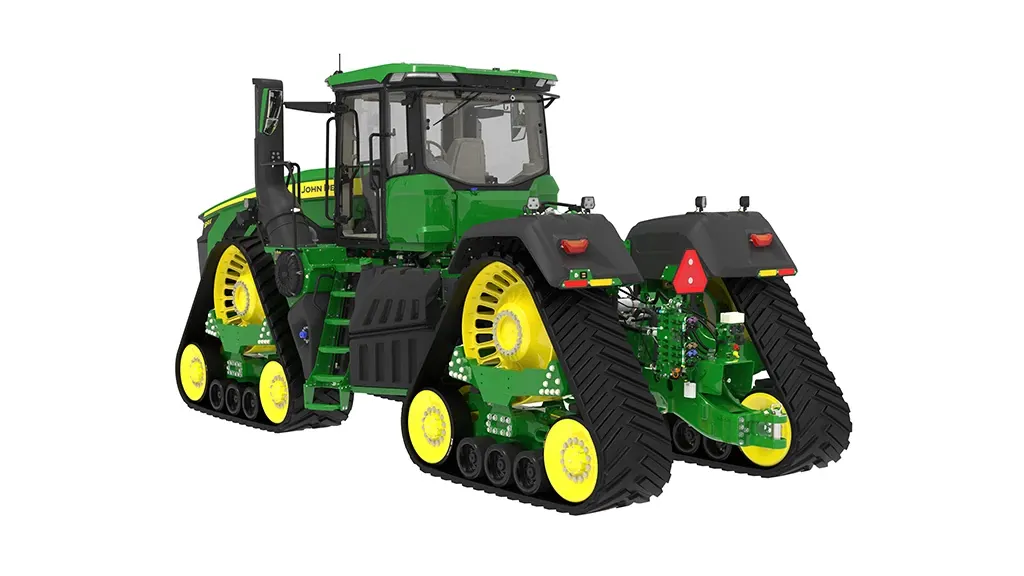

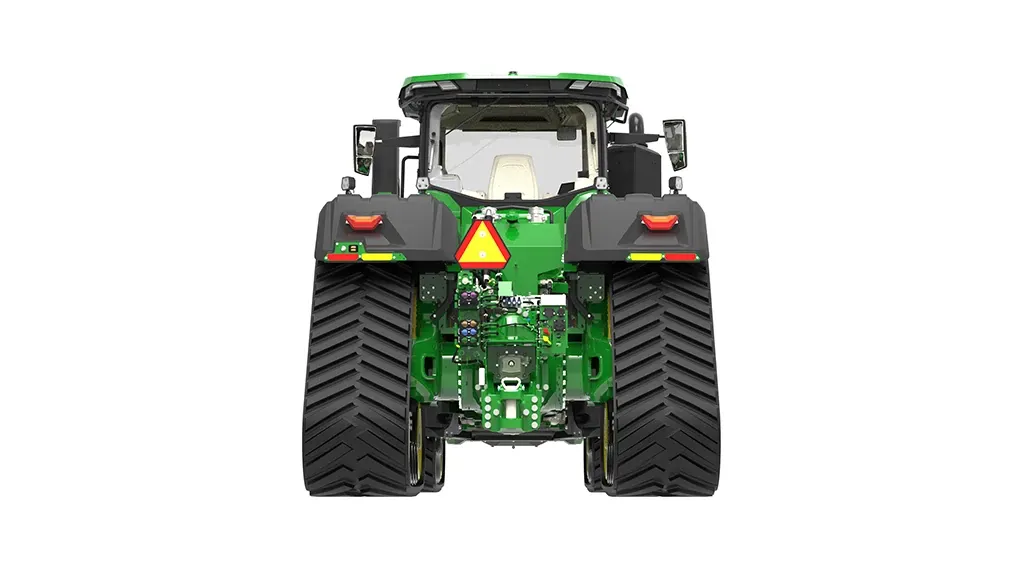

John Deere 9RX 710 SCRAPER

Tractor

When managing large scraper systems, the 9RX 710 Scraper Special delivers consistent traction and hydraulic flow, supporting steady material transport and controlled cycle times.

Product Features:

Engine hp: 781 hp Max / 710 hp Rated
JD18 Engine (18L)
e21™ Powershift Transmission
Fully Integrated Precision Ag Technology

View Product Brochure

Features

When managing large scraper systems, the 9RX 710 Scraper Special delivers consistent traction and hydraulic flow, supporting steady material transport and controlled cycle times.

Engine hp: 781 hp Max / 710 hp Rated

JD18 Engine (18L)

e21™ Powershift Transmission

Fully Integrated Precision Ag Technology

Benefits

Green tractor with oversized dual tires pulling a cultivator across a harvested field with dust trailing behind the equipment under a cloudy blue sky

Take on Your Toughest Work with Confidence

When the job demands maximum pull and performance, 9 Series tractors deliver the power, durability, and traction to keep you moving. Built for heavy draft and high-demand applications, they help you maintain field speed, cover more acres, and work through tough conditions—so you can stay on schedule when timing matters most.

Green tractor with large rear tires towing a wide cultivator across a dry, harvested field with dust rising heavily behind the equipment over flat farmland under a hazy sky

Keep Big Tools Moving Efficiently

Wide implements and high-speed operations push equipment to its limits. John Deere's 9 Series tractors are designed to maintain consistent performance under load, with the power, hydraulics, and traction needed to keep large tools operating at peak efficiency - helping you reduce bottlenecks, improve productivity, and get more done in every pass.

Person working at a desk using a keyboard and mouse while viewing a large monitor displaying a detailed map interface; a laptop and desk lamp sit nearby in a bright workspace

Turn Power into Predictable Performance

Productivity isn’t just about horsepower - it’s about how consistently you can apply it. 9 Series tractors combine integrated technology, precision capabilities, and reliable performance to help you work with confidence. From the cab to the cloud, you can monitor performance, document work, and make better decisions across your operation.

Specifications

Wheel or Track Configuration	4-Track
Drive Type	4WD

Engine Make	John Deere
Engine Model	JD18
Engine Family	VJDXL18.0342
Emissions Certifications	Final Tier 4 (FT4) / Stage V Compliant Diesel Engine
Displacement	1098 cu in.
Displacement	18 L
Aspiration	Dual turbochargers in series; Primary fixed displacement turbocharger and secondary wastegated turbocharger, air-to-air aftercooling, and cooled exhaust gas recirculation (EGR)
Number of Cylinders	6
Cylinder Liners	Wet-sleeve
Aftertreatment Type	Exhaust Gas Recirculation (EGR) - No Diesel Exhaust Fluid (DEF) used
Rated Engine Speed	1900 rpm
Rated Engine Power	700 hp
Rated Engine Power	522 kW
Rated Engine Power	710 PS
Maximum Engine Power	770 hp
Maximum Engine Power	574 kW
Maximum Engine Power	781 PS
Maximum Engine Power PS (HP ISO) at Maximum Engine Speed (EU 2016/1628)	781 hp
Maximum Engine Power PS (HP ISO) at Maximum Engine Speed (EU 2016/1628)	574 kW
Maximum Engine Power PS (HP ISO) at Maximum Engine Speed (EU 2016/1628)	791 PS
Maximum Engine Torque	At 1400 rpm: 3622 Nm / 2671 lb-ft
Power Bulge	10 %
Fuel Type	Diesel
Alternative Fuel Type	B30 Diesel Compatible
Torque Rise	38 %

Transmission Type	John Deere e21™ 21-speed PowerShift™; 21F, 11R with Efficiency Manager™
Maximum Speed Forward	40 km/h / 25 mph

Drawbar Category	Drawbar support for short scraper drawbars

Hydraulic System Type	Axial piston, closed-center, pressure-and-flow compensated, naturally-aspirated
Pump Rated Output	Triple: 636 L/min (168 gpm)
Number of Rear Selective Control Valves (SCVs)	Six 1.9-cm (3/4-in.) couplers
Available Flow at a Single Rear SCV	1.9-cm (3/4-in.) couplers: 180 L/min (44 gpm)
SCV Control	Electronic

Front Axle Differential Lock	Full-locking electrohydraulic

Rear Differential Lock	Full-locking electrohydraulic
Final Drive	Outboard planetary with three planetary gears

Steering Type	John Deere ActiveCommand Steering (ACS™)

Track Drive Type	Camso® Scraper 6500 (MICHELIN BIBTRACK 250 SCR) Positive Drive
Track Width	762 mm / 30 in.
Number Of Mid Rollers	Three

Battery Voltage	12 V
Battery Cold Cranking Amps	4750 CCA
Alternator Capacity	330 amp
Working Lights	18-24 LED
Driving Lights	LED

Seat Suspension	Air seat
Degree of Seat Swivel, Left Hand	25 degree (angle)
Degree of Seat Swivel, Right Hand	40 degree (angle)
Cab Suspension	Standard
Instructional Seat	Standard
Primary Display	G5ᴾˡᵘˢ CommandCenter™: 32.5 cm / 12.8 in.
Radio	Varies by comfort and convenience package
Inner Cab Volume	119 cu ft
Inner Cab Volume	3.37 m³
Cab Glass Area	73.81 sq ft
Cab Glass Area	6.86 m²

Guidance	Integrated AutoTrac™
Connectivity	Available with JDLink™ hardware, activations, and Ethernet harnesses (availability dependent upon destination)
Remote Diagnostics	Available with activated JDLink hardware and activations

Fuel Tank Capacity	515 gal.
Fuel Tank Capacity	1952 L
Cooling System Capacity	30.9 gal.
Cooling System Capacity	117 L
Transmission - Hydraulic System	53 gal.
Transmission - Hydraulic System	201 L
Crankcase Oil Volume	18.9 gal.
Crankcase Oil Volume	71.5 L

Wheelbase	182.4 in.
Wheelbase	4620 mm
Base Machine Weight	74000 lb.
Base Machine Weight	33500 kg
Overall Length	349.2 in.
Overall Length	8869 mm
Drawbar Ground Clearance	14.1 in.
Drawbar Ground Clearance	359 mm
Maximum Ballast Level	76000 lb.
Maximum Ballast Level	34500 kg

Country of Manufacture	USA
Date Collected	2025_04_03T00:00:00.0000008
