Studio image with a front left view of a 904 P-Tier Wheel Loader

John Deere 904 P

Large Wheel Loader

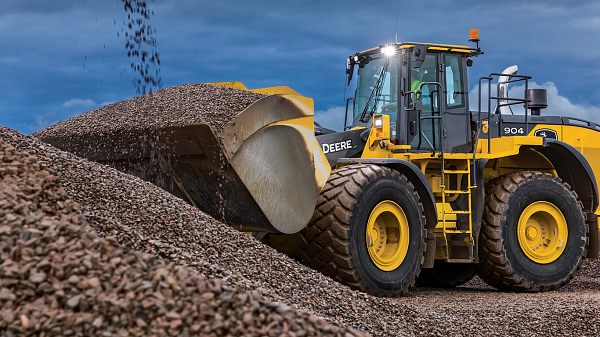

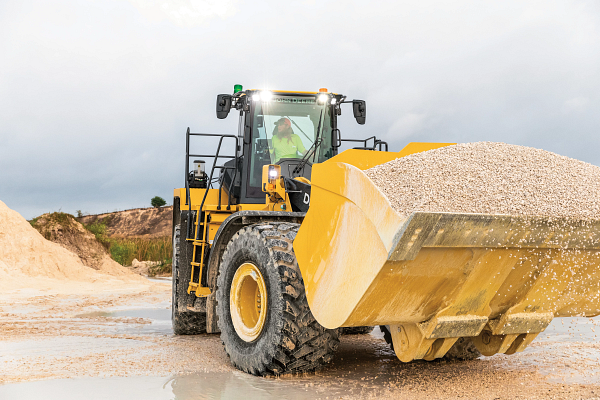

The John Deere 904 PTier Wheel Loader is designed to deliver power, extreme material capacity, and heavy-duty durability, helping operations move the most material efficiently in tough, large-scale applications.

Product Features:

  • Net Power: 320 kW (429 hp) at 1,400 rpm
  • Operating Weight: 35 335–35 727 kg (77,900–78,765 lb.)
  • Bucket Capacity: 7.1–7.5 m³ (9.3–9.8 cu. yd.)
  • Specifically designed to perform loadout tasks in Aggregates Operations
View Product Brochure

Specifications

Manufacturer John Deere
Model John Deere JD14
Non-Road Emission Standards EPA Final Tier 4/EU Stage V
Cylinders 6
Valves Per Cylinder 4
Displacement 13.6 L
Displacement 827 cu in.
Net Peak Power 1400 rpm
Net Peak Power At Rated RPM (ISO 9249) 320 kW
Net Peak Power At Rated RPM (ISO 9249) 429 hp
Net Peak Torque 1400 rpm
Net Peak Torque At Rated RPM (ISO 9249) 2184 Nm
Net Peak Torque At Rated RPM (ISO 9249) 1611 lb-ft
Net Torque Rise 44 %
Fuel System (Electronically Controlled) Electronic High Pressure Common Rail (HPCR)
Lubrication Full-flow spin-on filter and integral cooler
Aspiration Series turbocharged, charge air cooled
Air Cleaner Dual-element dry type, restriction indicator in cab monitor for service, additional centrifugal engine pre-cleaner

Fan Drive Type Hydraulically driven, proportionally controlled, fan aft of coolers, automatic reversing fan drive

System Type 24 volt with 150-amp alternator
Battery Voltage 12 V
Number Of Batteries 2
Battery Capacity Per Each 1400 CCA
Standard Alternator Rating 150 amp

Type Countershaft-type PowerShift™ with Lock-Up Torque Converter
Torque Converter Single stage, dual phase with freewheeling stator with Lock-Up Clutch
Shift Control Electronically modulated, adaptive, load and speed dependent
Operator Interface Steering-column or joystick-mounted F-N-R and gear-select lever; quick-shift button on hydraulic lever
Shift Modes Manual/auto (1st–5th or 2nd–5th); quick-shift button with 2 selectable modes: kick-down or kick-up/down; and 4 settings for clutch cutoff

Tire Size Used To Measure Travel Speeds 875/65R29 L3
Range 1 6.4 km/h
Range 1 4 mph
Range 2 11.4 km/h
Range 2 7.1 mph
Range 3 17.4 km/h
Range 3 10.8 mph
Range 4 24.6 km/h
Range 4 15.3 mph
Range 5 40.1 km/h
Range 5 24.9 mph

Final Drives Heavy-duty mid-board planetary
Standard Differentials Front Conventional
Standard Differentials Rear Conventional
Tire Size Used To Measure Oscillation 875/65R29 L3
Rear Axle Oscillation, Stop To Stop 16 degrees
Rear Axle Oscillation, Distance Each Direction 8 degrees
Service Brakes (ISO 3450) Outboard, forced oil cooled, multi disc
Parking Brake (ISO 3450) Automatic spring applied, hydraulically released, sealed wet multi disc

Tire Size Used To Measure Michelin 875/65R29, 1 Star L-3
Tread Width On Standard Tires 2441 mm
Tread Width On Standard Tires 96.1 in.
Width Over Tires On Standard Tires 3409 mm
Width Over Tires On Standard Tires 134.2 in.

Fuel Tank (With Lockable Cap) Refill Capacity 533 L
Fuel Tank (With Lockable Cap) Refill Capacity 141 gal.
Cooling System Refill Capacity 78.8 L
Cooling System Refill Capacity 83.2 qt
Diesel-Exhaust Fluid (DEF) Refill Capacity 26.3 L
Diesel-Exhaust Fluid (DEF) Refill Capacity 27.8 qt
Engine Oil With Vertical Spin-On Filter Refill Capacity 40 L
Engine Oil With Vertical Spin-On Filter Refill Capacity 42.3 qt
Transmission Reservoir With Vertical Filter Refill Capacity 27.9 L
Transmission Reservoir With Vertical Filter Refill Capacity 7.38 gal.
Axle Oil Without Coolers (Front And Rear, Each) Refill Capacity 68.1 L
Axle Oil Without Coolers (Front And Rear, Each) Refill Capacity 18 gal.
Hydraulic Reservoir With Filter Refill Capacity 181.7 L
Hydraulic Reservoir With Filter Refill Capacity 48 gal.
Parking Brake Oil (Wet Disc) Refill Capacity 0.7 L
Parking Brake Oil (Wet Disc) Refill Capacity 24 oz.

Pump Type And System (Loader And Steering) 2 variable-displacement, load-sensing axial-piston pumps; closed-center system
Rated RPM 2000 rpm
System Pressure At Max Rated Flow 6895 kPa
System Pressure At Max Rated Flow 1000 psi
Pump (Steering) 1 variable-displacement, load-sensing axial-piston pumps; closed-center system
Max Rated Flow At Rated RPM 199.4 L/min
Max Rated Flow At Rated RPM 52.7 gpm
System Relief Pressure (Loader And Steering) 24889 kPa
System Relief Pressure (Loader And Steering) 3611 psi
Loader Controls 2-function valve; single- or dual-lever controls; control lever lockout feature
Steering Type (ISO 5010) Power, fully hydraulic; single-lever control and adjustable wrist rest with conventional steering wheel override
Steering Articulation Full Arc Angle 80 degrees
Steering Articulation Angle Each Direction 40 degrees
Turning Radius (Measured To Centerline Of Outside Tire) 6.3 m
Turning Radius (Measured To Centerline Of Outside Tire) 20.75 ft, in.
Hydraulic Raise Cycle Time 5.9 seconds
Hydraulic Dump Cycle Time 2.3 seconds
Hydraulic Lower (Power Down) Cycle Time 3.6 seconds
Hydraulic Total Cycle Time 11.8 seconds
