John Deere 824 P

Large Wheel Loader

The John Deere 824 P-Tier Wheel Loader offers exceptional fuel efficiency and increased power compared to previous models, combined with advanced operator comfort features and robust durability, making it an ideal choice for maximizing productivity in demanding construction environments.

Product Features:

Net Power: 256 kW (343 hp) at 1,600 rpm
Operating Weight: 26 460–28 101 kg (58,334–61,952 lb.)
Bucket Capacity: 3.8–5.2 m³ (5.0–6.75 cu. yd.)
Heigh to Top of Cab: 11 ft., 9 in. (3.57 m)

View Product Brochure

Features

Net Power: 256 kW (343 hp) at 1,600 rpm

Operating Weight: 26 460–28 101 kg (58,334–61,952 lb.)

Bucket Capacity: 3.8–5.2 m³ (5.0–6.75 cu. yd.)

Heigh to Top of Cab: 11 ft., 9 in. (3.57 m)

Benefits

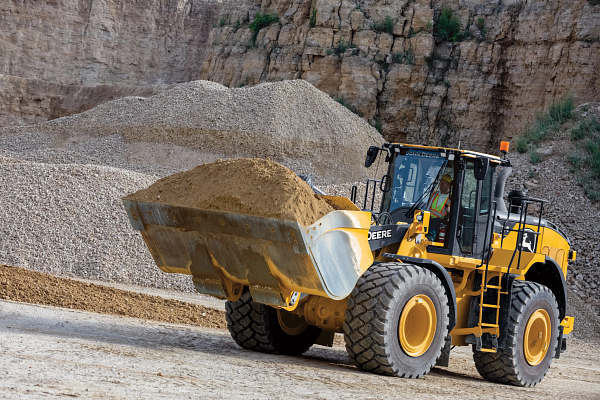

A large yellow front-end loader carries a full bucket of sand or fine gravel across a quarry floor

Move High Volumes with Production-Class Power

With ~343 horsepower and a heavy-production platform, the 824 P‑Tier is designed to move large amounts of material efficiently in aggregate, quarry, and high-volume loading applications.

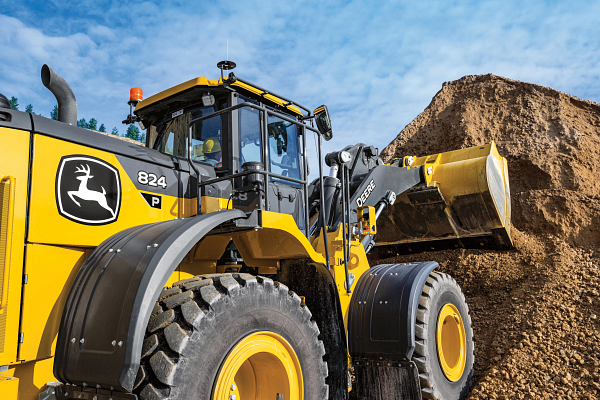

Close-up of a large yellow front-end loader working at a quarry, with its bucket raised and pressed into a tall pile of earth and gravel

Hit Target Loads and Maximize Cycle Efficiency

Optional SmartWeigh™ payload technology helps operators consistently hit target loads in real time—reducing rework and improving loading speed across every cycle.

Interior view of a heavy construction vehicle cab showing an operator seated at the controls, wearing a hard hat and a high-visibility safety vest

Vision and Detection Systems

Active jobsites present many operational challenges, including multiple machines, crew members, and bystanders. The John Deere Advanced Vision System (AVS) and SmartDetect™ can help enhance operator awareness to confidently navigate busy work areas.

Specifications

Manufacturer	John Deere
Model	PowerTech™ PSS 6090
Non-Road Emission Standards	EPA Final Tier 4/EU Stage IV
Cylinders	6
Valves Per Cylinder	4
Displacement	9 L
Displacement	548 cu in.
Net Peak Power	1600 rpm
Net Peak Power At Rated RPM (ISO 9249)	256 kW
Net Peak Power At Rated RPM (ISO 9249)	343 hp
Net Peak Torque	1300 rpm
Net Peak Torque At Rated RPM (ISO 9249)	1627 Nm
Net Peak Torque At Rated RPM (ISO 9249)	1200 lb-ft
Net Torque Rise	57 %
Rated Speed	1600 rpm
Fuel System (Electronically Controlled)	High-pressure common rail
Lubrication	Full-flow spin-on filter and integral cooler
Aspiration	Series turbocharged, charge air cooled
Air Cleaner	Under-hood, dual-element dry type, restriction indicator in cab monitor for service

Fan Drive Type	Hydraulically driven, proportionally controlled, fan aft of coolers

System Type	24 volt with 150-amp alternator
Battery Voltage	12 V
Number Of Batteries	2
Battery Capacity Per Each	1400 CCA
Standard Alternator Rating	150 amp

Type	Countershaft-type PowerShift™ with lockup torque converter
Torque Converter	Single stage, dual phase with freewheeling stator with lockup clutch
Shift Control	Electronically modulated, adaptive, load and speed dependent
Operator Interface	Steering-column or joystick-mounted F-N-R and gear-select lever; Quick-Shift button on hydraulic lever
Shift Modes	Manual/auto (1st–5th or 2nd–5th); Quick-Shift button with 2 selectable modes: kick-down or kick-up/down; and 4 settings for clutch cutoff

Tire Size Used To Measure Travel Speeds	26.5 R 25, 1 Star L3
Range 1	7 km/h
Range 1	4.4 mph
Range 2	13.4 km/h
Range 2	8.3 mph
Range 3	20.3 km/h
Range 3	12.6 mph
Range 4	29 km/h
Range 4	18 mph
Range 5	40.1 km/h
Range 5	24.9 mph

Tire Size Used To Measure Travel Speeds	26.5 R 25, 1 Star L3
Range 1	7.1 km/h
Range 1	4.4 mph
Range 2	13.3 km/h
Range 2	8.3 mph
Range 3	29 km/h
Range 3	18 mph

Final Drives	Heavy-duty inboard-mounted planetary
Standard Differentials Front	Hydraulic locking
Standard Differentials Rear	Conventional
Optional Differentials Front	Dual locking
Optional Differentials Rear	Dual locking
Tire Size Used To Measure Oscillation	26.5 R 25, 1 Star L3
Rear Axle Oscillation, Stop To Stop	26 degrees
Rear Axle Oscillation, Distance Each Direction	13 degrees
Rear Axle Oscillation, Distance Each Direction, With 17.5 R 25 Tires	13 degrees
Service Brakes (ISO 3450)	Hydraulically actuated, spring released, inboard, sun-gear mounted, pressure oil cooled, self-adjusting, single disc
Parking Brake (ISO 3450)	Automatic spring applied, hydraulically released, oil cooled, multi disc

Tire Size Used To Measure	26.5 R 25, 1 Star L3
Tread Width On Standard Tires	2299 mm
Tread Width On Standard Tires	90.5 in.
Width Over Tires On Standard Tires	3084 mm
Width Over Tires On Standard Tires	121.4 in.

Fuel Tank (With Lockable Cap) Refill Capacity	476.2 L
Fuel Tank (With Lockable Cap) Refill Capacity	126 gal.
Cooling System Refill Capacity	48 L
Cooling System Refill Capacity	50.7 qt
Diesel-Exhaust Fluid (DEF) Refill Capacity	26.1 L
Diesel-Exhaust Fluid (DEF) Refill Capacity	27.6 qt
Engine Oil With Vertical Spin-On Filter Refill Capacity	34.1 L
Engine Oil With Vertical Spin-On Filter Refill Capacity	36 qt
Transmission Reservoir With Vertical Filter Refill Capacity	27.9 L
Transmission Reservoir With Vertical Filter Refill Capacity	7.37 gal.
Axle Oil Without Coolers (Front And Rear, Each) Refill Capacity	55.3 L
Axle Oil Without Coolers (Front And Rear, Each) Refill Capacity	14.6 gal.
Hydraulic Reservoir With Filter Refill Capacity	141.9 L
Hydraulic Reservoir With Filter Refill Capacity	37.5 gal.
Parking Brake Oil (Wet Disc) Refill Capacity	0.7 L
Parking Brake Oil (Wet Disc) Refill Capacity	24 oz.

Pump Type And System (Loader And Steering)	2 variable-displacement, load-sensing axial-piston pumps; closed-center system
Rated RPM	2250 rpm
System Pressure At Max Rated Flow	6895 kPa
System Pressure At Max Rated Flow	1000 psi
Pump (Steering)	1 variable-displacement, load-sensing axial-piston pumps; closed-center system
Max Rated Flow At Rated RPM	484.5 L/min
Max Rated Flow At Rated RPM	128 gpm
System Relief Pressure (Loader And Steering)	24879 kPa
System Relief Pressure (Loader And Steering)	3610 psi
Loader Controls	2-function valve; single- or dual-lever controls; control lever lockout feature; optional 3rd- and 4th-function valve with auxiliary levers
Steering Type (ISO 5010)	Power, fully hydraulic
Steering Articulation Full Arc Angle	80 degrees
Steering Articulation Angle Each Direction	40 degrees
Turning Radius (Measured To Centerline Of Outside Tire)	5.9 m
Turning Radius (Measured To Centerline Of Outside Tire)	19.4 ft, in.
Hydraulic Raise Cycle Time	5.9 seconds
Hydraulic Dump Cycle Time	1.3 seconds
Hydraulic Lower (Power Down) Cycle Time	2.5 seconds
Hydraulic Total Cycle Time	9.7 seconds

Tire Size Used To Measure Travel Speeds	26.5 R 25, 1 Star L3
Range 1	7.1 km/h
Range 1	4.4 mph
Range 2	13.3 km/h
Range 2	8.3 mph
Range 3	20.3 km/h
Range 3	12.6 mph
Range 4	29 km/h
Range 4	18 mph
Range 5	40 km/h
Range 5	24.85 mph
