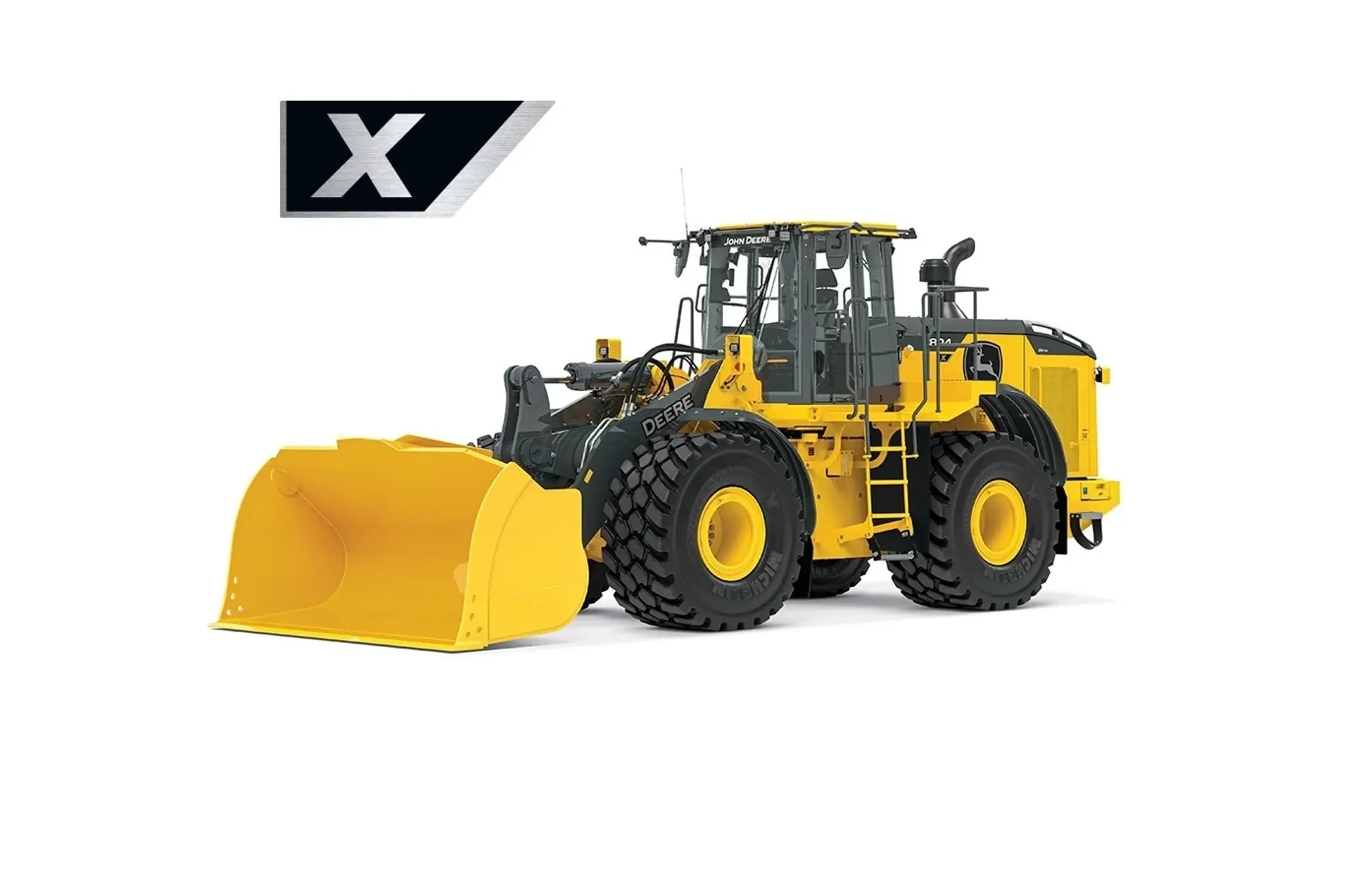

824 X-Tier Wheel Loader front left
824 X-Tier Wheel Loader Dumping Dirt
824 X-Tier Wheel Loader dumping dirt

John Deere 824 X

Large Wheel Loader

The John Deere 824 X-Tier Wheel Loader is a high-performance and sustainable solution, featuring an innovative Electric Variable Transmission for fuel efficiency and reliability, enabling material handling capabilities and reduced total cost of ownership.

Product Features:

  • Net Peak Power: 264 kW (354 hp) at 1,600 rpm
  • Operating Weight: 27 213–28 504 kg (59,994–62,840 lb.)
  • Bucket Capacity: 4.0–5.35 m³ (5.25–7.0 cu. yd.)
  • Height to Top of Cab: 11 ft., 9 in. (3.57 m)
View Product Brochure

Specifications

Manufacturer John Deere
Non-Road Emission Standards EPA Tier 4/EU Stage V
Cylinders 6
Valves Per Cylinder 4
Displacement 9 L
Displacement 549 cu in.
Net Peak Power At Rated RPM (ISO 9249) 256 kW
Net Peak Power At Rated RPM (ISO 9249) 343 hp
Net Peak Torque At Rated RPM (ISO 9249) 1627 Nm
Net Peak Torque At Rated RPM (ISO 9249) 1200 lb-ft
Net Torque Rise 57 %
Fuel System (Electronically Controlled) High-pressure common rail
Lubrication Full-flow spin-on filter and integral cooler
Aspiration Series turbocharged, charge air cooled
Air Cleaner Under-hood dual-element dry type, restriction indicator in cab monitor for service

Fan Drive Type Hydraulically driven, proportionally controlled, fan aft of coolers

System Type 24 volt with 145-amp alternator
Battery Voltage 1400 V

Type Electric Variable Transmission (EVT)
Operator Interface Steering-column or joystick-mounted F-N-R and gear-select lever; quick-shift button on hydraulic lever
Shift Modes Auto (1st–4th or 2nd–4th); quick-shift button with 2 selectable modes: kick-down or kick-up/down

Final Drives Dual locking front and rear – optional
Standard Differentials Front Hydraulic locking front with conventional rear – standard; dual locking front and rear – optional
Standard Differentials Rear Hydraulic locking front with conventional rear – standard; dual locking front and rear – optional
Rear Axle Oscillation, Stop To Stop 26 degrees
Service Brakes (ISO 3450) Automatic spring applied, hydraulically released, oil cooled, multi disc
Parking Brake (ISO 3450) Automatic spring applied, hydraulically released, oil cooled, multi disc

Tread Width On Standard Tires 2299 mm
Tread Width On Standard Tires 90.5 in.
Width Over Tires On Standard Tires 3084 mm
Width Over Tires On Standard Tires 121.4 in.

Fuel Tank (With Lockable Cap) Refill Capacity 476.2 L
Fuel Tank (With Lockable Cap) Refill Capacity 126 gal.
Cooling System Refill Capacity 48 L
Cooling System Refill Capacity 50.7 qt
Diesel-Exhaust Fluid (DEF) Refill Capacity 26.1 L
Diesel-Exhaust Fluid (DEF) Refill Capacity 27.6 qt
Engine Oil With Vertical Spin-On Filter Refill Capacity 34.1 L
Engine Oil With Vertical Spin-On Filter Refill Capacity 36 qt
Transmission Reservoir With Vertical Filter Refill Capacity 53 L
Transmission Reservoir With Vertical Filter Refill Capacity 14 gal.
Axle Oil Without Coolers (Front And Rear, Each) Refill Capacity 55.3 L
Axle Oil Without Coolers (Front And Rear, Each) Refill Capacity 14.6 gal.
Hydraulic Reservoir With Filter Refill Capacity 151 L
Hydraulic Reservoir With Filter Refill Capacity 39.9 gal.
Parking Brake Oil (Wet Disc) Refill Capacity 0.7 L
Parking Brake Oil (Wet Disc) Refill Capacity 24 oz.

Pump Type And System (Loader And Steering) 2 variable-displacement, load-sensing axial-piston pumps; closed-center system
Pump (Steering) 1 variable-displacement, load-sensing axial-piston pumps; closed-center system
System Relief Pressure (Loader And Steering) 24890 kPa
System Relief Pressure (Loader And Steering) 3610 psi
Loader Controls 2-function valve; single- or dual-lever controls; control lever lockout feature; optional 3rd- and 4th-function valve with auxiliary controls
Steering Type (ISO 5010) Power, fully hydraulic
Steering Articulation Full Arc Angle 80 degrees
Steering Articulation Angle Each Direction 40 degrees
Turning Radius (Measured To Centerline Of Outside Tire) 5.9 m
Turning Radius (Measured To Centerline Of Outside Tire) 19.4 ft, in.
Hydraulic Raise Cycle Time 6.1 seconds
Hydraulic Dump Cycle Time 1.4 seconds
Hydraulic Lower (Power Down) Cycle Time 2.8 seconds
Hydraulic Total Cycle Time 10.3 seconds
