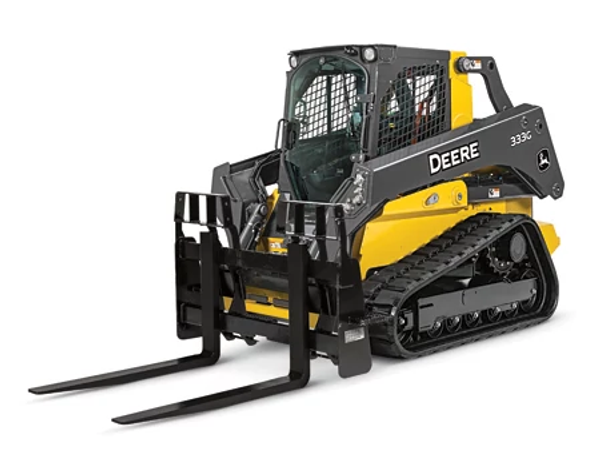

Front left view of Pallet Fork Attachment on 333G Compact Track Loader

John Deere PF45C

Compact Equipment Attachment

The PF45 Severe Duty Pallet Fork with a 45-inch frame offers unparalleled strength and durability for handling heavy loads, enhancing productivity and efficiency on demanding work sites.

Product Features:

  • Increased Capacity and Durability
  • Improved Visibility
  • Versatile Tine Lengths

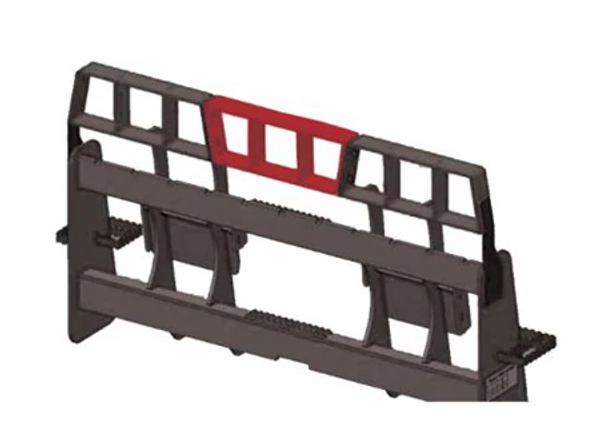

  • Optional Bolt-On Brick Guard
View Product Brochure

Specifications

Frame Width 1380 mm
Frame Width 54 in.
Frame Height 940 mm
Frame Height 37 in.
Overall Length with Frame and Two Minimum Length Tines 1520 mm
Overall Length with Frame and Two Minimum Length Tines 60 in.
Overall Length with Frame and Two Maximum Length Tines 1830 mm
Overall Length with Frame and Two Maximum Length Tines 72 in.

Fork Suspension Class ITA Class 3B
Minimum Fork Tine Length 1220 mm
Minimum Fork Tine Length 48 in.
Maximum Fork Tine Length 1520 mm
Maximum Fork Tine Length 60 in.
Fork Tine Pair Load Rating 4490 kg
Fork Tine Pair Load Rating 9900 lb.
Fork Cross Section 119.2 x 50 mm
Fork Cross Section 4.7 x 2 in.
Fork Thickness 50 mm
Fork Thickness 2 in.
Fork Spacing 127 mm
Fork Spacing 5 in.

Overall Weight with Frame and Two Minimum Length Tines 331 kg
Overall Weight with Frame and Two Minimum Length Tines 729 lb.
Overall Weight with Frame and Two Maximum Length Tines 360 kg
Overall Weight with Frame and Two Maximum Length Tines 793 lb.
Brick Guard Kit 8 kg
Brick Guard Kit 18 lb.

Compact Track Loaders 331G, 333G, 331 P-Tier, 333 P-Tier, 335 P-Tier
Skid Steer Loaders 330G, 332G, 330 P-Tier, 334 P-Tier
