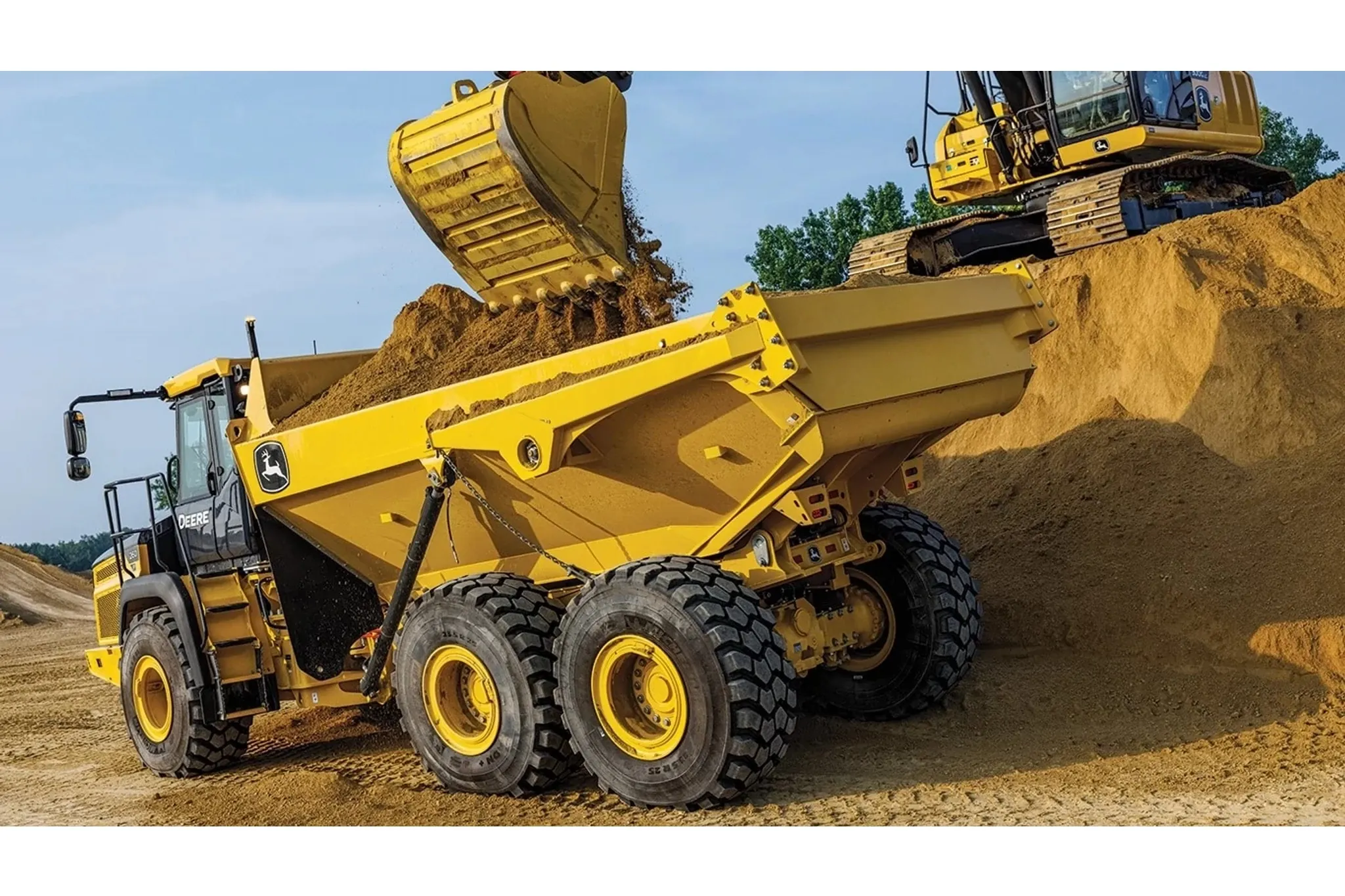

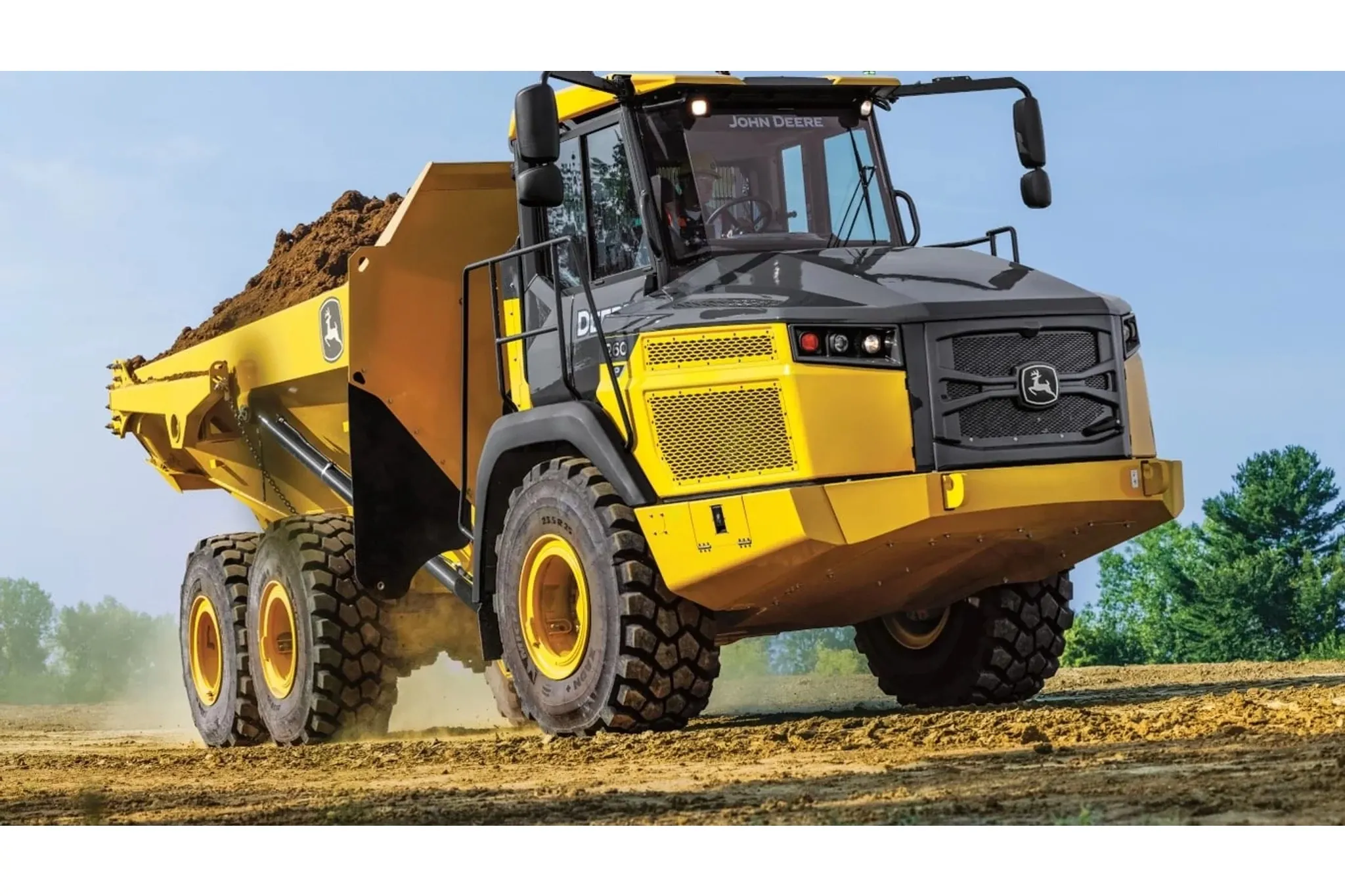

John Deere 260 P
Articulated Dump Truck
The John Deere 260 P-Tier Articulated Dump Truck is designed with features and innovations that enhance productivity, efficiency, and operator comfort in demanding construction environments.
Product Features:
- Net Power: 239 kW (321 hp) at 1,900 rpm
- Rated Payload: 24 192 kg (53,334 lb.)
- Heaped Capacity: 15.0 m³ (19.6 cu yd)
- Onboard Weighing and Control Systems
Features
The John Deere 260 P-Tier Articulated Dump Truck is designed with features and innovations that enhance productivity, efficiency, and operator comfort in demanding construction environments.
Net Power: 239 kW (321 hp) at 1,900 rpm
Rated Payload: 24 192 kg (53,334 lb.)
Heaped Capacity: 15.0 m³ (19.6 cu yd)
Onboard Weighing and Control Systems
Benefits
Improve Operator Awareness with Advanced Vision System
Optional Advanced Vision System adds additional cameras to enhance operator situational awareness. The additional cameras provide a larger field of view for jobsite surroundings and articulation sensors provide dynamic panning capabilities.
Standard Onboard Features to Help Ease Operation
When enabled through the monitor, standard onboard features help optimize operator focus and productivity. Features include rollover protection, downhill dump protection, hill hold, shuttle shifting, and more.

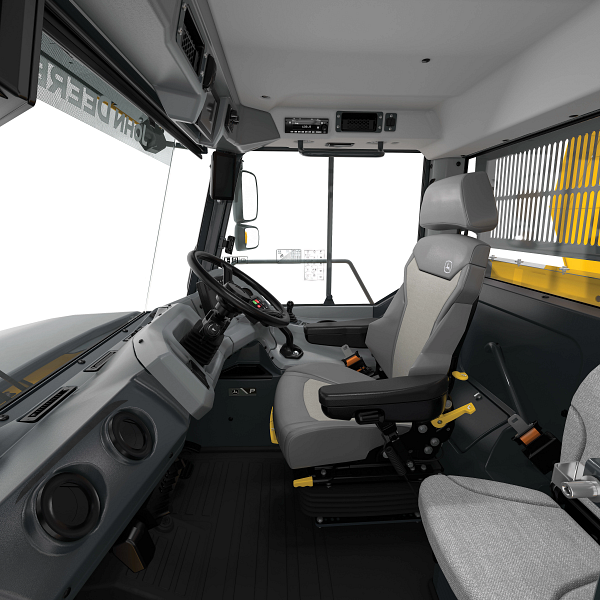

A Quieter, Pressurized Cab with Adaptive Suspension
The truck is equipped with a sealed, pressurized cab that helps minimize fatigue and helps operators stay comfortable and alert. Standard adaptive suspension system adjusts to the jobsite, stabilizing the ride and the cab.
Specifications
| Manufacturer | John Deere |
| Model | PowerTech™ PSS 6090 |
| Non-road emission standards | EPA Final Tier 4 |
| Configuration | Inline 6 series turbocharger with exhaust gas recirculation (EGR) and selective catalytic reduction (SCR) |
| Valves per cylinder | 4 |
| Displacement (cu in.) | 549 cu in. |
| Displacement (L) | 9 L |
| Net power rpm rating (rpm) | 1900 rpm |
| Net power (ISO 9249) at rated rpm (hp) | 321 hp |
| Net power (ISO 9249) at rated rpm (kW) | 239.4 kW |
| Net peak torque rpm rating (rpm) | 1400 rpm |
| Net peak torque (ISO 9249) at rated rpm (lb-ft) | 1143 lb-ft |
| Net peak torque (ISO 9249) at rated rpm (Nm) | 1549.7 Nm |
| Aspiration | Turbocharged and charge air cooled |
| Fuel system | High-pressure common rail, with 10- and 2-micron filtration and water separator |
| Cold-start aid option and description | Optional ether start aid and block heater (110 and 240 volt, depending on location) |
| Cold-start aid factory-installed option and description | Diesel-fired coolant heater |
| Engine cooling | Liquid cooled with single-pass radiator, remote pressurized coolant tank, and charge air cooler |
| Transmission type | 8-speed forward, 4-speed reverse, countershaft/planetary type with integral retarder and torque proportioning differential |
| Retarder type | Integral, gear dependent, hydrodynamic, oil-to-air cooled, variable, fully automatic |
| Differential type | Torque-proportioning, planetary-type, inter-axle differential lock (IDL) with multi-disc clutch |
| Output torque front (%) | 32 % |
| Output torque rear (%) | 68 % |
| Shift controls | Fully automatic, electronically modulated PowerShift™, load-speed adaptive with gear-skip and gear-hunting protection |
| Transmission Operator Interface | Push-button F-N-R, selectable speed- and gear-range limits, selectable retarder aggressiveness, downhill-descent control, and gear-hold |
| Gear 1 forward speed (mph) | 3.7 mph |
| Gear 1 forward speed (km/h) | 6 km/h |
| Gear 1 reverse speed (mph) | 3.7 mph |
| Gear 1 reverse speed (km/h) | 6 km/h |
| Gear 2 forward speed (mph) | 5.2 mph |
| Gear 2 forward speed (km/h) | 8.4 km/h |
| Gear 2 reverse speed (mph) | 5.2 mph |
| Gear 2 reverse speed (km/h) | 8.4 km/h |
| Gear 3 forward speed (mph) | 6.8 mph |
| Gear 3 forward speed (km/h) | 10.9 km/h |
| Gear 3 reverse speed (mph) | 6.8 mph |
| Gear 3 reverse speed (km/h) | 10.9 km/h |
| Gear 4 forward speed (mph) | 9.9 mph |
| Gear 4 forward speed (km/h) | 15.9 km/h |
| Gear 4 reverse speed (mph) | 9.9 mph |
| Gear 4 reverse speed (km/h) | 15.9 km/h |
| Gear 5 forward speed (mph) | 14.3 mph |
| Gear 5 forward speed (km/h) | 23 km/h |
| Gear 6 forward speed (mph) | 19.9 mph |
| Gear 6 forward speed (km/h) | 32 km/h |
| Gear 7 forward speed (mph) | 28 mph |
| Gear 7 forward speed (km/h) | 45 km/h |
| Gear 8 forward speed (mph) | 34.2 mph |
| Gear 8 forward speed (km/h) | 52.1 km/h |
| Axles differential | Helical transfer gears, spiral bevel, hydraulically actuated multi-disc cross-axle differential lock (CDL) |
| Final drive type | Mid-board-mounted planetary |
| Service brake type | Dual-circuit, hydraulically actuated, wet multi-disc, outboard mounted |
| Parking brake type | Spring-applied hydraulically released, driveline-mounted, dry-disc with self-adjusting wear pad |
| Auxiliary brake type | Fully automatic; transmission mounted, gear dependent; hydrodynamic retarder with selectable levels |
| Hydraulics type | Pressure-compensated load-sensing (PCLS), variable-displacement axial-piston main pump |
| Secondary steering pump type | Ground-driven gear pump with unloader valve |
| Dump cylinder hydraulics type | Dual-acting, single-stage with heat-treated, chrome-plated, and polished cylinder rods; hardened steel replaceable bushings and pivot pins |
| Cycle time power down (sec.) | 7 seconds |
| Cycle time raise time (sec.) | 12 seconds |
| Voltage (V) | 24 V |
| Number of batteries | 2 |
| Voltage per battery (V) | 12 V |
| Battery capacity (CCA) | 1400 CCA |
| Alternator voltage (V) | 28 V |
| Alternator standard rating (amp) | 130 amp |
| Type | 2 hydrostatically actuated, double-acting hydraulic cylinders; ground-driven secondary steering pump |
| Angle, side to side (degrees) | 45 degrees |
| Lock-to-lock turns (rotations) | 4.2 |
| Front | Semi-independent leading A-frame geometry with transverse link for lateral restraint and self-leveling oil-filled struts with inclusive nitrogen-charged accumulators |
| Rear | Load-equalizing, pivoting walking beams with laminated suspension blocks, tri-link geometry and transverse links for lateral restraint |
| Type | High-strength steel |
| Struck capacity (cu yd) | 15.3 cu yd |
| Struck capacity (m³) | 11.7 m³ |
| Capacity heaped at 2:1 ISO 6483 ratio (cu yd) | 19.6 cu yd |
| Capacity heaped at 2:1 ISO 6483 ratio (m³) | 15 m³ |
| Capacity heaped at 2:1 ISO 6483 ratio with optional tailgate (cu yd) | 20.8 cu yd |
| Capacity heaped at 2:1 ISO 6483 ratio with optional tailgate (m³) | 15.9 m³ |
| Maximum dump angle (degrees) | 70 degrees |
| Heater type | Body ducted to accept optional exhaust heating |
| Standard type | Radial earthmovers |
| Standard size | 23.5R25 |
| Optional size | 750/65R25 |
| Ground-level service fluid and filters | Ground-level engine, transmission, and axle oil-level check and filter replacement; ground-level fueling and fuel-filter replacement |
| Ground-level service coolers | Swing-out coolers for easy cleaning standard; reversing fans optional |
| Ground-level service fluid sampling | Fluid-sampling ports standard; quick-service ports optional |
| Fuel tank (gal.) | 131 gal. |
| Fuel tank (L) | 495.9 L |
| Diesel-exhaust fluid (DEF) tank (gal.) | 12.7 gal. |
| Diesel-exhaust fluid (DEF) tank (L) | 48.1 L |
| Engine oil capacity with filter (qt) | 36 qt |
| Engine oil capacity with filter (L) | 34.1 L |
| Engine coolant (gal.) | 13.7 gal. |
| Engine coolant (L) | 51.9 L |
| Transmission fluid (gal.) | 15.9 gal. |
| Transmission fluid (L) | 60.2 L |
| Hydraulic reservoir (gal.) | 30 gal. |
| Hydraulic reservoir (L) | 113.6 L |
| Front axle fluid, standard capacity (gal.) | 9.8 gal. |
| Front axle fluid, standard capacity (L) | 37.1 L |
| Mid axle fluid, standard capacity (gal.) | 9.8 gal. |
| Mid axle fluid, standard capacity (L) | 37.1 L |
| Rear axle fluid, standard capacity (gal.) | 9.8 gal. |
| Rear axle fluid, standard capacity (L) | 37.1 L |
| Front, empty, with standard equipment (lb) | 27778 lb. |
| Front, empty, with standard equipment (kg) | 12600 kg |
| Front, loaded, with standard equipment (lb) | 34926 lb. |
| Front, loaded, with standard equipment (kg) | 15840 kg |
| Middle, empty, with standard equipment (lb) | 10906 lb. |
| Middle, empty, with standard equipment (kg) | 4947 kg |
| Middle, loaded, with standard equipment (lb) | 34000 lb. |
| Middle, loaded, with standard equipment (kg) | 15422 kg |
| Rear, empty, with standard equipment (lb) | 10906 lb. |
| Rear, empty, with standard equipment (kg) | 4947 kg |
| Rear, loaded, with standard equipment (lb) | 34000 lb. |
| Rear, loaded, with standard equipment (kg) | 15422 kg |
| Total, empty, with standard equipment (lb) | 49591 lb. |
| Total, empty, with standard equipment (kg) | 22494 kg |
| Total, loaded, with standard equipment (lb) | 102925 lb. |
| Total, loaded, with standard equipment (kg) | 46686 kg |
| Rated payload, empty, with standard equipment (lb) | 53334 lb. |
| Rated payload, empty, with standard equipment (kg) | 24192 kg |
| Steel dump-body liner (lb) | 1759 lb. |
| Steel dump-body liner (kg) | 798 kg |
| Tailgate (lb) | 1404 lb. |
| Tailgate (kg) | 637 kg |
| 750/65R25 tires (lb) | 1376 lb. |
| 750/65R25 tires (kg) | 624 kg |
| Turning circle radius, inside (ft, in.) | 14 ft, in. |
| Turning circle radius, inside (m) | 4.27 m |
| Turning circle radius, outside (ft, in.) | 26.33 ft, in. |
| Turning circle radius, outside (m) | 8.03 m |
