John Deere 450 P
Small Dozer
The John Deere 450 P-Tier Utility Dozer offers unmatched versatility and power, combining advanced technology with superior operator comfort to maximize efficiency and productivity in any construction or earth-moving project.
Product Features:
- Net Power: 71 hp (53 kW) at 2,000 rpm
- Operating Weight: 17,816–19,035 lb. (8081–8634 kg)
- Track on Ground: 96 in. (2433 mm)
- Cold Weather Package
Features
The John Deere 450 P-Tier Utility Dozer offers unmatched versatility and power, combining advanced technology with superior operator comfort to maximize efficiency and productivity in any construction or earth-moving project.
Net Power: 71 hp (53 kW) at 2,000 rpm
Operating Weight: 17,816–19,035 lb. (8081–8634 kg)
Track on Ground: 96 in. (2433 mm)
Cold Weather Package
Benefits
No DEF? No Problem

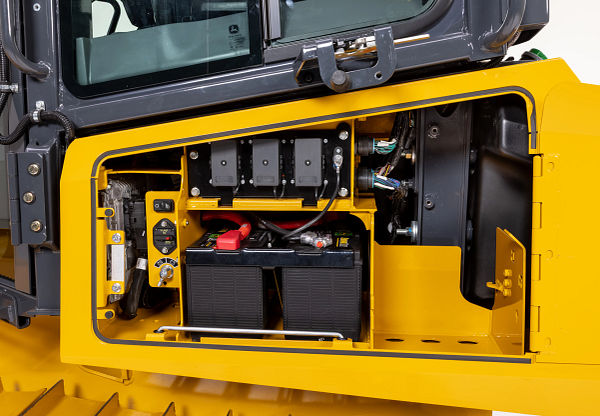

The 450 P-Tier Dozer boosts uptime and simplifies maintenance by removing the diesel exhaust fluid (DEF) system and extending hydraulic oil change intervals to 4,000 hours. It also improves hose routing to reduce leaks and uses easy-access spin-on filters.
Grade Control Solutions
John Deere precision construction technology enables operators to make accurate grading passes while significantly reducing re-work. The best part, our machine technology can be upgraded at any time, from entry level to advanced, now you have the flexibility to upgrade when the time is right.

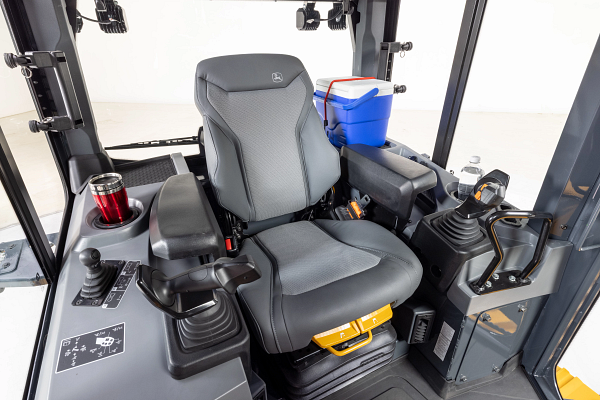

Enhanced Cab Comfort and Visibility
The cab design is upgraded for improved visibility and operator comfort, featuring a larger space, heated and ventilated seats, LED lighting, and a rearview camera, compared to previous models. Operators benefit from better ergonomics and a more comfortable working environment, aiding productivity
Specifications
| Manufacturer | John Deere |
| Model | PowerTech EWX 4045 |
| Non-Road Emission Standards | EPA Final Tier 4 |
| Cylinders | 4 |
| Valves per Cylinder | 4 |
| Displacement | 276 cu in. |
| Displacement | 4.5 L |
| SAE Net Rated Power at 2000 rpm | 71 hp |
| SAE Net Rated Power at 2000 rpm | 52.9 kW |
| Net Peak Torque at 1500 rpm | 221 lb-ft |
| Net Peak Torque at 1500 rpm | 299.6 Nm |
| Net Torque Rise | 33 lb-ft |
| Net Torque Rise | 44.7 Nm |
| Engine Bore and Stroke | 4.19 x 5 in. |
| Engine Bore and Stroke | 10.6 x 12.7 mm |
| Aspiration | Turbocharged |
| Air Cleaner | Dual-stage dry tube with tangential unloader |
| Lubrication | Pressure system with full-flow spin-on filter and oil-to-water cooler |
| Fuel System | High pressure common rail |
| Slope Operation, Maximum Angle | 45 degree (angle) |
| Displacement | 4.5 L |
| SAE Net Rated Power at 2000 rpm | 58 kW |
| Net Peak Torque at 1200 rpm | 334 Nm |
| Fan Type | Blower-type direct drive cooling fan |
| Engine Coolant Rating | -34 °F |
| Engine Coolant Rating | -36.7 ℃ |
| Engine Radiator Fins per Inch | 8 |
| Hydrostatic Cooler (Oil/Air) | 9.5 |
| Hydraulic Cooler (Oil/Air) | 9.5 |
| Charge Air Cooler (Air/Air) | 6.35 |
| Fuel Cooler (Fuel/Air) | None |
| Safety Fan Guard | SAE J1308 and ISO3457 |
| Transmission Type | Automatic, dual-path, hydrostatic (HST) drive |
| System Relief Pressure | 5511 psi |
| System Relief Pressure | 37997 kPa |
| Forward Travel Speed | 5 mph |
| Forward Travel Speed | 8 km/h |
| Reverse Travel Speed | 5 mph |
| Reverse Travel Speed | 8 km/h |
| Maximum (Optional) Travel Speed | 6 mph |
| Maximum (Optional) Travel Speed | 9.7 km/h |
| Filter, Charge Oil | 10 micron |
| Cooling | Oil-to-air |
| Steering Type | Single-lever steering, speed, direction control, and counter-rotation |
| Final Drives Total Ratio | 48.40 to 1 |
| Final Drives Type | Triple-reduction final drives |
| Maximum Drawbar Pull | 29490 lb. |
| Maximum Drawbar Pull | 131.2 kN |
| Drawbar Pull at 1.2 mph | 15560 lb. |
| Drawbar Pull at 1.9 km/h | 69.2 kN |
| Drawbar Pull at 2.0 mph | 9340 lb. |
| Drawbar Pull at 3.2 km/h | 41.5 kN |
| Service Brakes Type | Hydraulic |
| Parking Brakes Type | Spring-applied, hydraulically released |
| Tracks | Large deep-heat-treated components; pins and bushings are sealed for life; rollers and idlers are permanently sealed and lubricated. |
| Track Gauge | 57 in. |
| Track Gauge | 1447.8 mm |
| Grouser Width (Shoe Width) | 16 in. |
| Grouser Width (Shoe Width) | 406.4 mm |
| Chain | Sealed and lubricated |
| Shoes, Each Side | 40 STD and EL, 37 on Max Life |
| Track Rollers, Each Side | 6 |
| Track Length on Ground | 96 in. |
| Track Length on Ground | 2438.4 mm |
| Ground Contact Area | 3062 sq in. |
| Ground Contact Area | 19754.8 cm² |
| Ground Pressure | 6.4 psi |
| Ground Pressure | 44.1 kPa |
| Track Pitch Standard | 6.3 in. |
| Track Pitch Standard | 160 mm |
| Track Pitch Maximum | 6.7 in. |
| Track Pitch Maximum | 170.2 mm |
| Track Gauge | 1651 mm |
| Grouser Width (Shoe Width) | 610 mm |
| Track Length on Ground | 2433 mm |
| Ground Contact Area | 29.677 cm² |
| Ground Pressure | 31.3 kPa |
| Track Pitch Standard | 160 mm |
| Track Pitch Maximum | 171 mm |
| Type | Open center hydraulic system with fixed-displacement gear pump |
| Type (Electro-Hydraulic Option) | Open center hydraulic system with fixed-displacement gear pump |
| Pump Displacement | 1.8 cu in. |
| Pump Displacement | 29.5 cc |
| System Relief Pressure | 3000 psi |
| System Relief Pressure | 20684.3 kPa |
| Filter, Return Oil | 8 micron |
| Maximum Flow at Unloaded High Idle | 16 gpm |
| Maximum Flow at Unloaded High Idle | 60.6 L/min |
| Control | Three-function direct-acting T-bar grip |
| Control (Electro-Hydraulic Option) | Three-function electro-hydraulic joystick with proportional roller angle function |
| Cooling | oil-to-air |
| Cylinders Type | Heat treated, chrome-plated, polished cylinder rods, hardened steel (replaceable bushings) pivot pins |
| Lift Cylinders Bore | 2.8 in. |
| Lift Cylinders Bore | 71 mm |
| Lift Cylinders Rod Diameter | 1.4 in. |
| Lift Cylinders Rod Diameter | 35.6 mm |
| Lift Cylinders Stroke | 16.5 in. |
| Lift Cylinders Stroke | 419 mm |
| Lift Cylinders Closed Length | 29.4 in. |
| Lift Cylinders Closed Length | 746.8 mm |
| Angle Cylinders Bore | 2.8 in. |
| Angle Cylinders Bore | 71 mm |
| Angle Cylinders Rod Diameter | 1.8 in. |
| Angle Cylinders Rod Diameter | 45.7 mm |
| Angle Cylinders Stroke | 16.2 in. |
| Angle Cylinders Stroke | 411.5 mm |
| Angle Cylinders Closed Length | 30.6 in. |
| Angle Cylinders Closed Length | 777.2 mm |
| Pitch Cylinder Stroke | 2 in. |
| Pitch Cylinder Stroke | 50.8 mm |
| Pitch Cylinder Rod Diameter | 3.9 in. |
| Pitch Cylinder Rod Diameter | 99 mm |
| Pitch Cylinder Closed Length | 3.7 in. |
| Pitch Cylinder Closed Length | 94 mm |
| Tilt Cylinder Bore | 17.7 in. |
| Tilt Cylinder Bore | 450 mm |
| Voltage | 24 V |
| Number of 12-V Batteries | 2 |
| Battery Capacity | 950 CCA |
| Reserve Capacity Time | 190 minutes |
| Cab Alternator Rating | 100 amp |
| Canopy Alternator Rating | 100 amp |
| Lights Standard | (4) cab mounted |
| Lights Optional | (8) cab mounted LED |
| Type | ROPS (ISO 3471 - 2008) and FOPS (ISO 3449 - 2005) |
| Alternator, Low Voltage | Indicator |
| Battery Voltage | Display |
| Engine Air Filter Restriction | Indicator |
| Engine Coolant Temperature | Gauge, Indicator, and Audible Alarm |
| Engine Oil Pressure | Gauge, Indicator, and Audible Alarm |
| Fan Reversal | Sealed Switch Module (SSM) |
| FNR / Park Indication | Display |
| Fuel Level | Gauge and Indicator |
| Diesel-Exhaust Fluid (DEF) Level | Gauge, Indicator, and Audible Alarm |
| Hourmeter | Display |
| Hydraulic Oil Filter Restriction | Indicator |
| Hydraulic Oil Temperature | Indicator and Audible Alarm |
| No Engine Decel Indicator | Sealed Switch Module (SSM) |
| Park Brake Engaged | Indicator |
| Return to Neutral | Indicator |
| Seatbelt | Indicator |
| Caution Light (Service Code Check) | Indicator |
| Stop Indicator | Indicator and Audible Alarm |
| Tachometer | Display |
| Transmission Oil Charge Pressure | Display, Indicator, and Audible Alarm |
| Transmission Oil Charge Filter Restriction | Indicator |
| Transmission Oil Temperature | Indicator and Audible Alarm |
| Transmission Speed | Display |
| Water in Fuel | Indicator |
| Fuel Tank Capacity with Lockable Cap | 53.45 gal. |
| Fuel Tank Capacity with Lockable Cap | 202.3 L |
| Cooling System Capacity with Recovery Tank | 4.5 gal. |
| Cooling System Capacity with Recovery Tank | 17 L |
| Engine Oil Capacity with Filter | 15.5 qt |
| Engine Oil Capacity with Filter | 14.7 L |
| Hydraulic / Hydrostatic Oil (Common Reservoir) Capacity with Filters | 18.6 qt |
| Hydraulic / Hydrostatic Oil (Common Reservoir) Capacity with Filters | 17.6 L |
| Final Drive Capacity (Each) | 9.2 qt |
| Final Drive Capacity (Each) | 8.7 L |
| Engine Oil Change Interval | 500 hours |
| Final Drive Oil Change Interval | 1000 hours |
| Hydraulic Oil Change Interval | 4000 hours |
| Hydrostatic Oil Change Interval | 4000 hours |
| Engine Coolant Change Interval | 6000 hours |
| Cab Fresh Air and Recirculation Filters Service Hours | As required |
| Primary Engine Air Filter Service Hours | As required |
| Secondary Engine Air Filter Service Hours | As required |
| Engine Oil Filter Service Hours | 500 |
| Primary Fuel Filter Service Hours | 500 |
| Final Fuel Filter Service Hours | 500 |
| Auxiliary Fuel Filter (If Equipped) Service Hours | 500 |
| Fuel Tank Breather Service Hours | 2000 |
| Hydrostatic Transmission Filter Service Hours | 2000 |
| Hydraulic System Filter Service Hours | 2000 |
| Exhaust Filter Service Hours | As required |
| Diesel-Exhaust Fluid (DEF) Dosing Unit Filter Service Hours | 2000 |
| OCV Filter Service Hours | 2000 |
| Sight Gauges Type | Hydraulic/hydrostatic reservoir |
| Operating Weights Type | With standard equipment, rollover protective structures, full fuel tank, 79-kg (175-lb) operators |
| Base Weight | 17816 lb. |
| Base Weight | 8081.2 kg |
