RB Series Rollout Bucket dumping dirt and gravel

John Deere RB72

Compact Equipment Attachment

The RB72 Rollout Bucket by John Deere offers enhanced material handling efficiency through its pivot mechanism delivering superior dump height and minimized spillage, reinforced with durable pivot pins and an open design for easy loading and extended tool life with a universal bolt-on cutting edge.

Product Features:

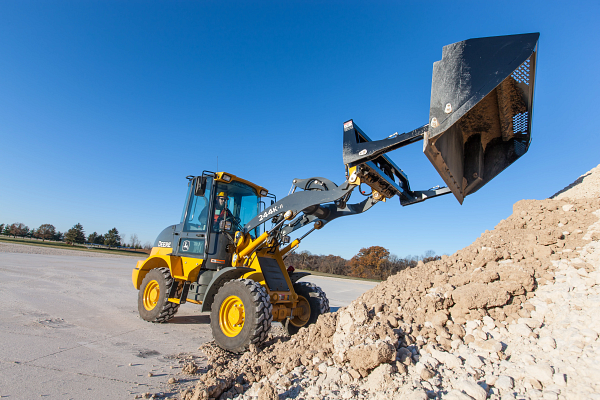

  • Open Design That Enables Quick, Clean, and Easy Material Loading
  • Three Sizes for Achieving Elevated Dump Heights in High-Capacity Applications

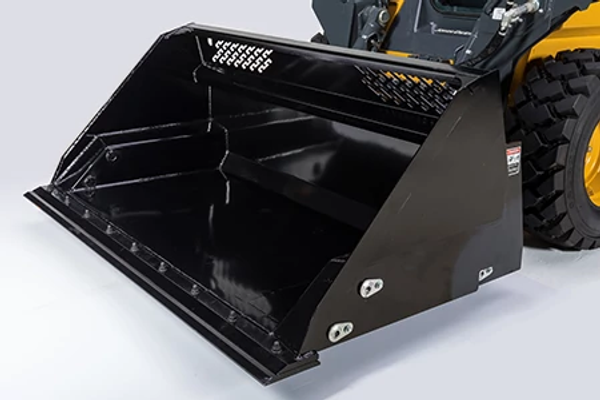

  • Standard Universal Bolt-On Cutting Edge for Extended Wear Life
  • Durable Construction
View Product Brochure

Specifications

Weight 532 kg
Weight 1170 lb.
Width 1850 mm
Width 73 in.
Height 820 mm
Height 32.3 in.
Length Overall 1270 mm
Length Overall 50 in.
Heaped Capacity 0.91 m³
Heaped Capacity 32.1 cu ft
Dump Reach (Heaped Capacity) 860 mm
Dump Reach (Heaped Capacity) 34 in.
Dump Angle (Heaped Capacity) 114 degree (angle)

Bore Diameter 64 mm
Bore Diameter 2.5 in.
Pivot Pin Diameter 38 mm
Pivot Pin Diameter 1.5 in.
Rod Diameter 38 mm
Rod Diameter 1.5 in.
Maximum Operating Pressure 25000 kPa
Maximum Operating Pressure 3625 psi

Length 200 mm
Length 8 in.
Thickness 19 mm
Thickness 0.75 in.

Compact Track Loader 317G, 325G
Skid Steer Loader 316GR, 318G, 320G, 324G
