New DYNAPAC CP1200

Compaction

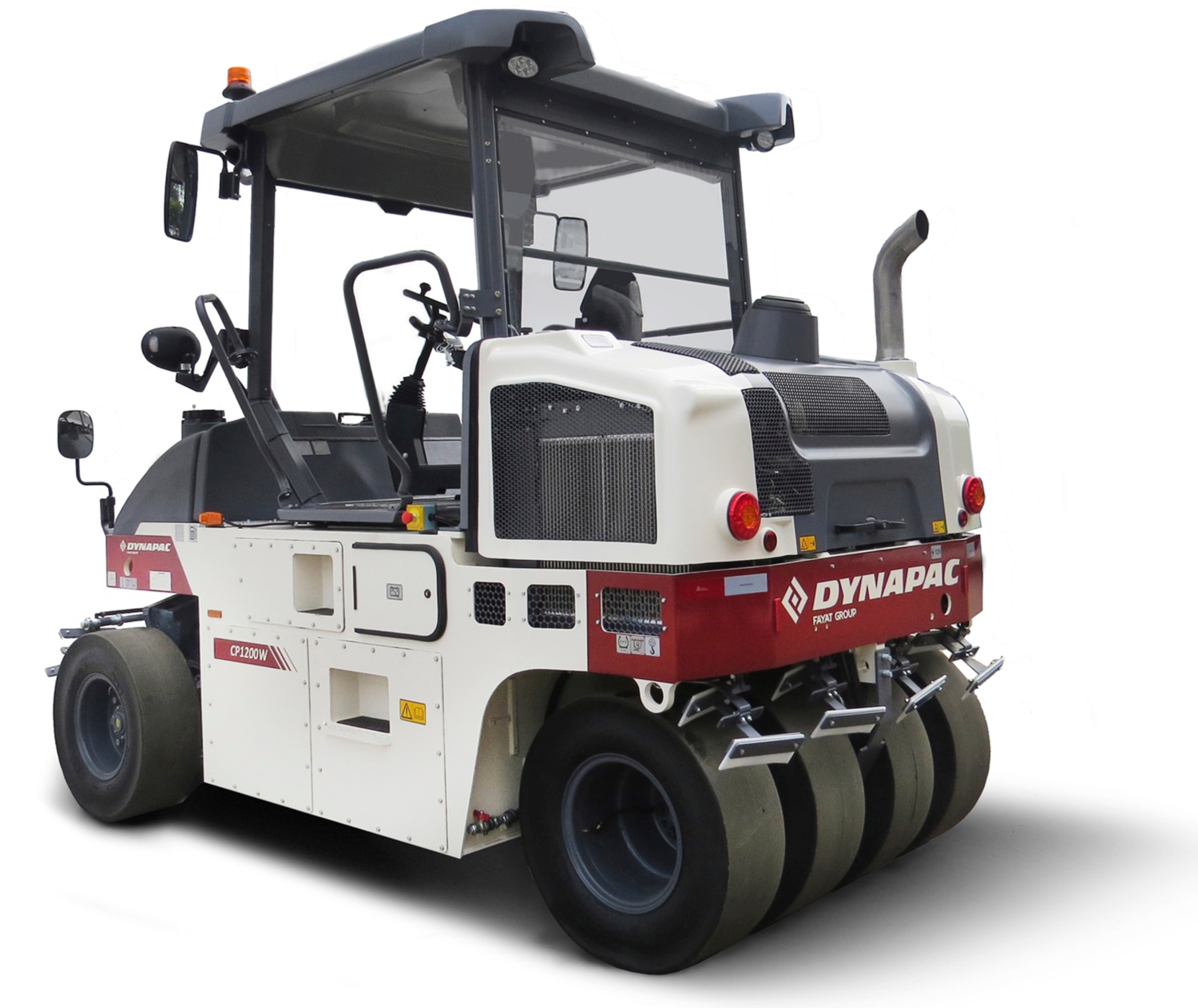

DYNAPAC CP1200
REQUEST A QUOTE Click To Call: 405-945-8594

DYNAPAC MANUFACTURES A SERIES OF PNEUMATIC ROLLERS in the 12-27 weight class including the CP1200, our most popular model featured here;  give us a call if you have interest in a larger model.  All Dynapac pneumatics incorporate several new features that will enhance efficiency, serviceability, operator comfort and the end result. The unique cab design offers an outstanding workplace for the operator, and the dual-circuit braking system is another Dynapac-only feature. With genuine Dynapac performance you can add the final touch to any project.

Click to Call: (405) 945-8594

More Info

The flexible ballast solution, the versatile scraper and sprinkler solutions and possibility for Air-On-the-Run, heat covers, asphalt temperature meter, edge presser/cutter and speedometer makes the machines optimal to seal surfaces. Thanks to its weight, it also serves as a roller for other types of ground.

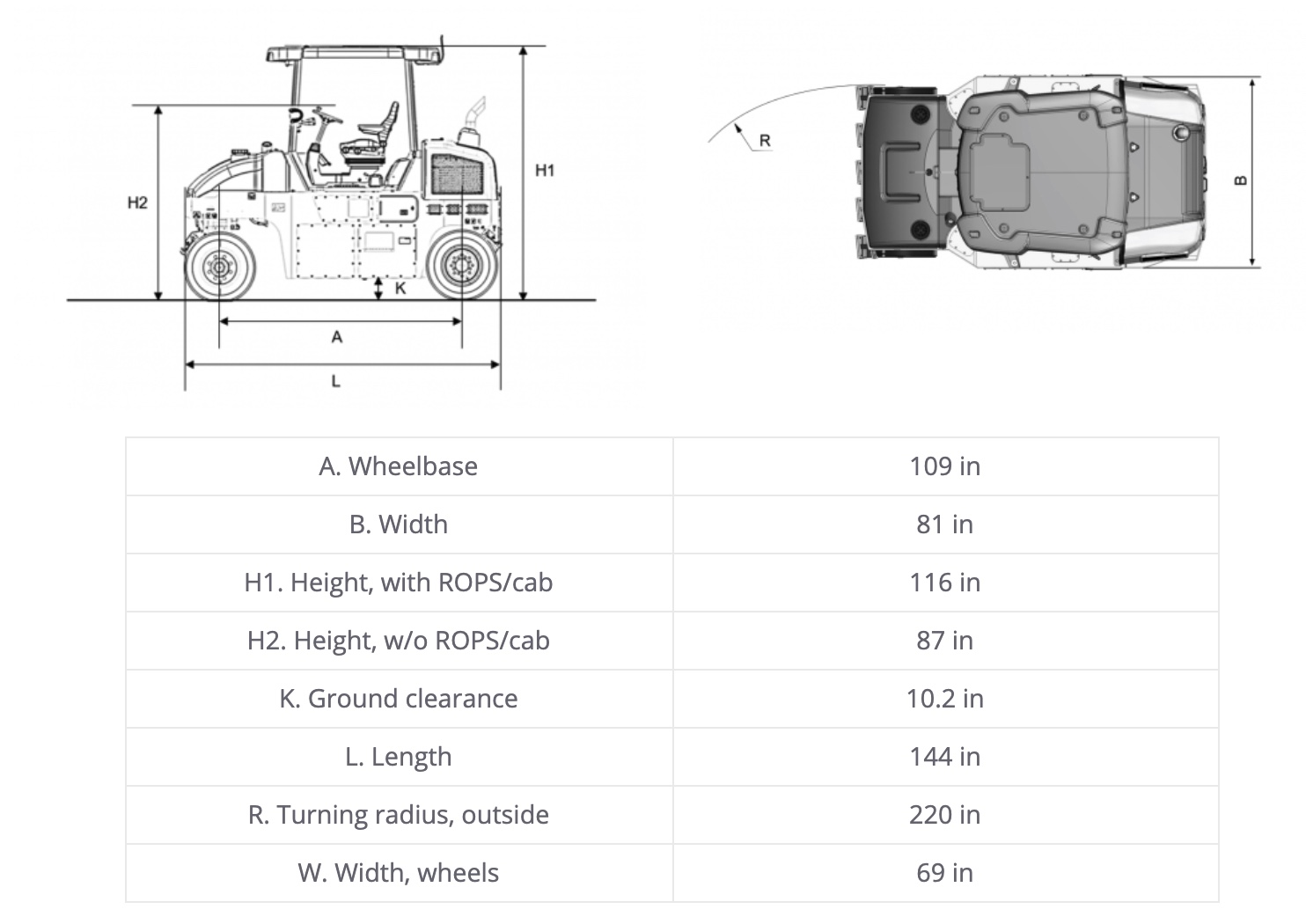

Dynapac CP1200 Dimensions

Dynapac CP1200 Dimensions

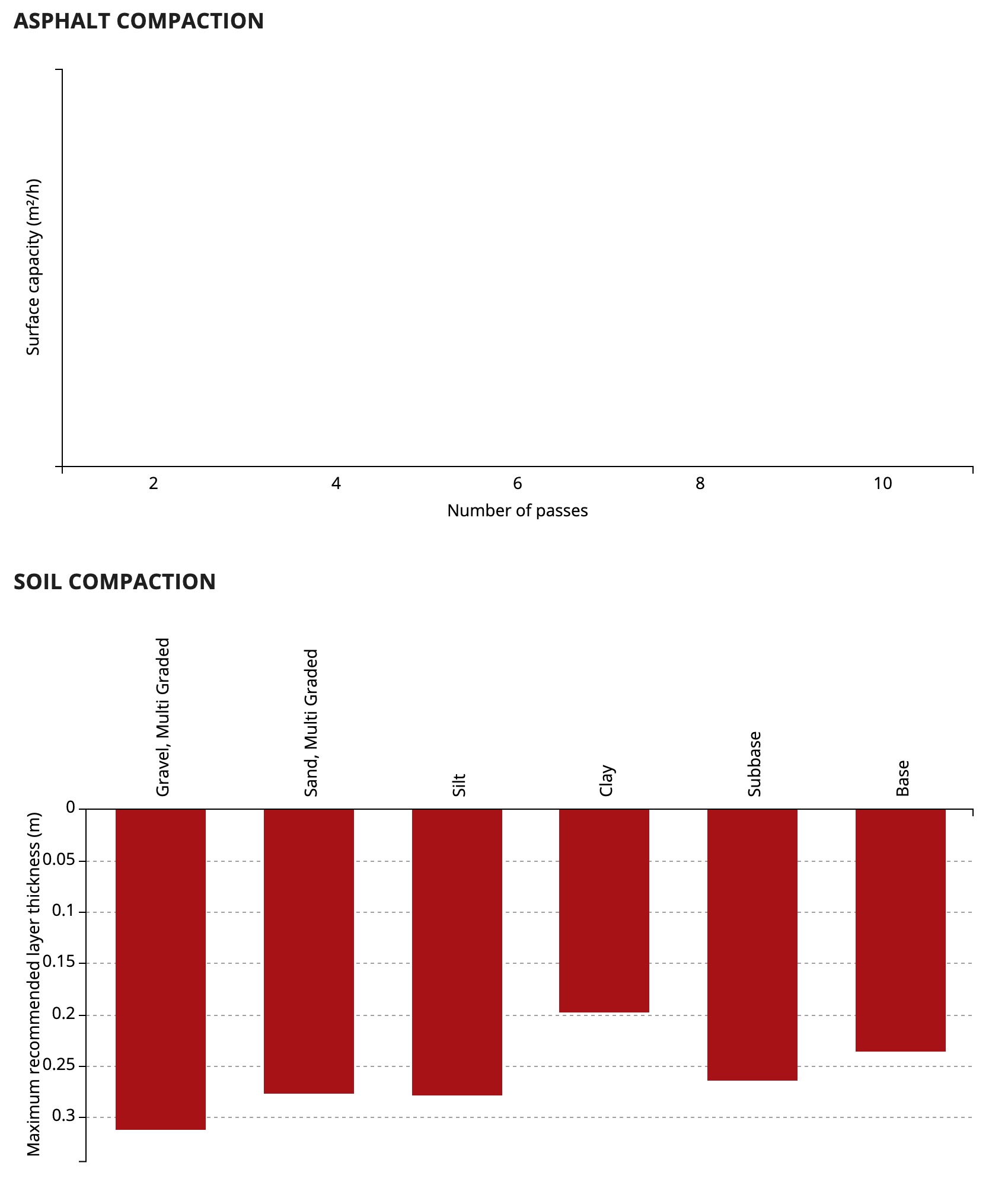

Dynapac CP1200 Soil Compaction Data

Dynapac CP1200 Compaction Depth

Masses
Operating mass (incl. ROPS) 12,200 lbs
Operating mass (incl. Cab) 12,900 lbs
Mass with max. ballast 26,700 lbs
Operating mass (incl. Canopy) 11,905 lbs

Traction
Transmission Hydrostatic, direct drive motors at rear tires
Speed low mph
Speed high mph
Max. theoretical gradeability 30 %
Speed range 0-10 mph

Compaction
Rolling width 69 in
Tire overlap 0.5 in
Wheel loads, without ballast 1,367 lbs
Wheel loads, with max. ballast 2,954 lbs
Tire pressure, min 35 psi
Tire pressure, max 120 psi
Tire type (smooth) 7.50-15, 14 ply
Water spray system, type Pressurized, electric pump
Water spray system, tank capacity 92 gal
Water spray system, spray nozzle one per tire
Number of tires 5 front, 4 rear
Wheel oscillation (°) ±3

Engine
Manufacturer/Model Cummins QSF 2.8 (Stage IIIB/Tier 4final)
Rated power, SAE J1995 74 hp @ 2,200 rpm
Type Water cooled turbo Diesel
Fuel tank capacity 34 gal
Electrical system 12 V

Alternative Engine
Manufacturer/Model Cummins QSB 2.8 (Stage IIIA/Tier 3)
Rated power, SAE J1995 55 kW (74 hp ) @ 2,200 rpm
Type Water cooled turbo Diesel

Hydraulic system
Driving Axial piston pump with variable displacement.
Axial piston motors with constant displacement.
Steering Gear pump with constant displacement.
Service brake Hydrost. braking on drive wheels (rear)
Parking/Emergency brake Failsafe multidisc brake in rear axle.

EQUIPMENT (STANDARD AND OPTIONS)

Standard

Arm rest, Backup alarm, Battery switch, Cocoa mats, Documentation (Manuals - one set), Emergency stop, Fuel level display, Horn, Hour meter, Hydraulic check points, Hydraulic oil lever indicator, Interloc system, Key master and start, Lifting and tiedown eyes, Mirrors (process view), Mirrors (traffic view), Neutral start arrangement, Parking brake, Pressurized sprinkler system, Rotating beacon, Seat with suspension, Sliding and swiveling operator unit, Speedometer, Sprinkler system, Sprinkler timer, Standard Platform, Tachometer display, Towing eyelet (rear), Warning – Air cleaner, Warning – Brake, Warning – Clogged hydraulic oil filter, Warning – Engine temperature, Warning – Engine oil pressure, Warning – Hydraulic fluid temperature, Warning – Low charge, Warning – Low fuel level, Working lights LED (front/rear)

Optional

Flexible ballast option: 8 steel ballast (7,720 lb/front) or 12 steel ballast (11,690 lb/front & rear), Air On the Run system, Asphalt temperature meter, Biologically degradable hydraulic oil, Canopy or ROPS/FOPS or Cab incl. ACC, Driving lights (RH or LH), Dyn@link, Dyn@link advanced, Emulsion tank, Fire extinguisher, First aid box, Heat covers for wheels, Michelin Tires, Radio & MP3 player (Cab), Rotating beacon (LED), Rotating beacon (Ignition Control/LED), Seat belts 3” (ROPS or Cab), Seat luxury (ROPS or Cab), Single scrapers, Slow Moving Vehicle sign, Spare tyre, Sprinkler pump (back up), Tool set, Towing eyelet (front), Vandal cover (Canopy or ROPS/FOPS), Water tank lockable, Working lights (night LED)
