Key Features
Provide superior compaction performance.
Prevents misuse to the machine and over-compaction.
A revolution in serviceability.
Sustainability and working environment in focus.
Puts you in full control of the entire compaction process.

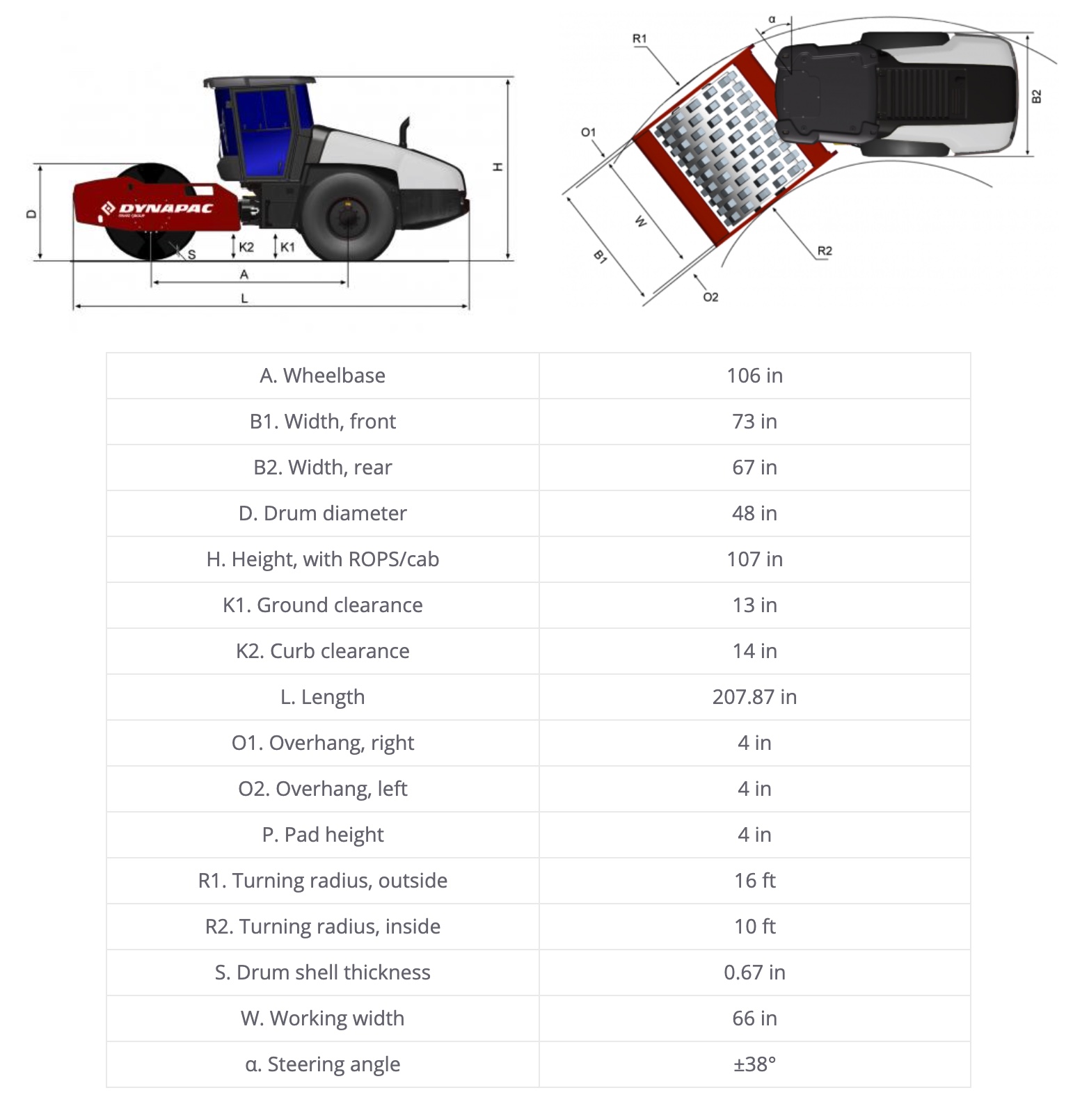

Dynapac CA1500PD Dimensions
Equipment (Standard and Options)
24V outlet socket, operator's platform
AntiSpin drive system
Automatic vibration control
Back up alarm
Brake release
Cab or ROPS/FOPS
Cross Mounted Engine
Combi cooler with Hydraulicly driven fan
Display: Engine temp, Fuel level, Hydr. temp, Speedometer, Tachometer, Voltage
ECO mode
Emergency stop
Filler cap inside lockable hood
Hydraulic checkpoints
Parking brake
Rear axle, No-Spin
Seismic with Compaction Meter including Active Bouncing Control
Shock mounted platform
Steering wheel, adjustable
Suspension seat, swivelling
Storage Compartment
Vandal cover
Warning lights: Air cleaner, Brake, Clogged hyd. fluid filter, Engine oil pressure/ temp, Hyd oil temp, Low charge, Low fuel
1m X 1m Visibility
Zero spill oil & coolant change
DYNAPAC® SEISMIC™ DOES IT DIFFERENTLY
Conventional vibratory compactors deliver a rapid succession of impacts to the soil surface at a frequency that is either pre-set at a high or low amplitude or at a frequency that is adjusted manually. Dynapac® Seismic™ does it differently. Since the drum and the soil act as one dynamic system, several benefits can be found from the system’s natural frequency.
At the natural frequency, the drum amplitude is enhanced significantly, since energy is automatically fed to the system at exactly the right time. This, in turn, maximizes the contact force between the drum and the ground, yielding maximized compaction and energy efficiency. The best compaction parameters guarantee an optimal output. A machine that can determine soil characteristics and then automatically interact with them, will make the world of difference in compaction results. Let the machine feel the soil and cooperate with it.
