John Deere 2112DC
Carry-All Scraper
The John Deere 2112DC Carry-all Scraper is a robust and versatile earthmoving tool designed to handle a variety of challenging terrain and materials.
Product Features:
- Struck Capacity: 10.7 m³ (14 cu. yd.)
- Heaped Capacity: 16.4 m³ (21.5 cu. yd.)
- Quick-Attach System and Versatility
- Fast-Dump Bucket Design
Features
The John Deere 2112DC Carry-all Scraper is a robust and versatile earthmoving tool designed to handle a variety of challenging terrain and materials.
Struck Capacity: 10.7 m³ (14 cu. yd.)
Heaped Capacity: 16.4 m³ (21.5 cu. yd.)
Quick-Attach System and Versatility
Fast-Dump Bucket Design
Benefits

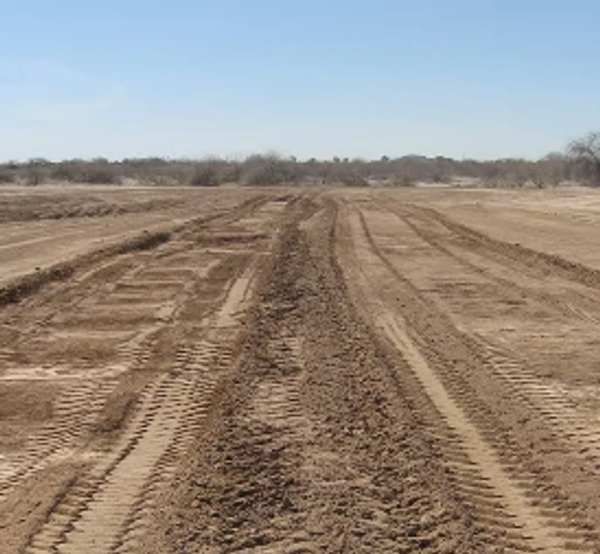

AutoLoad™ System for Smooth Loading and Efficient Operations
An innovation in the earthmoving industry exclusive to John Deere, the AutoLoad feature allows novice and experienced operators alike to be consistently productive while operating John Deere tractors and scrapers with the touch of a button, even if they have never operated tractors and scrapers.

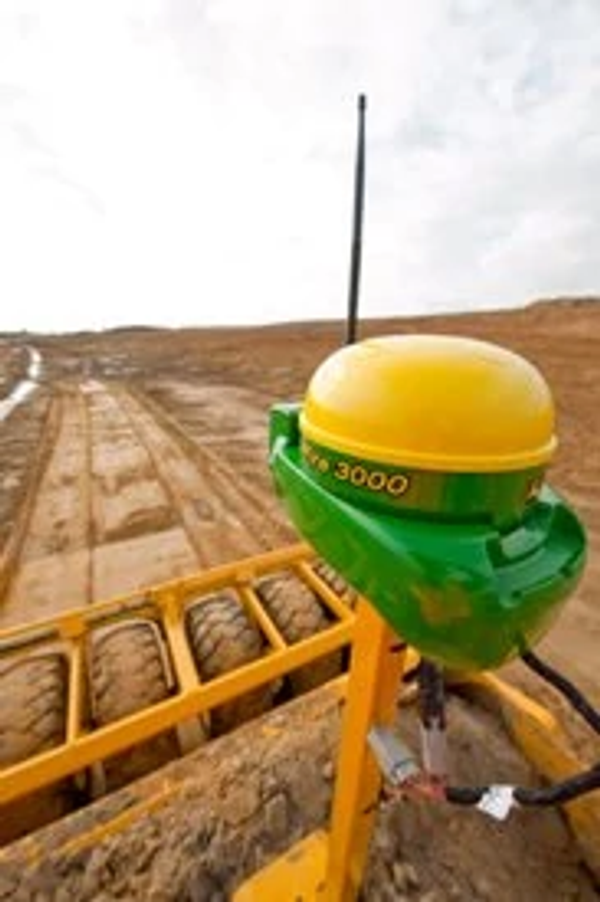

Automate Water Management with iGrade™ Leveling System
The iGrade™ controller automates John Deere’s Surface Water Pro™ Plus system and supports new water management tasks by controlling scraper blade height for grading and distance-based operations. It integrates with existing Precision Ag components and supports four key applications on approved John Deere tractors: Surface Water Pro Plus automation, grade control, distance trip, and plane control.

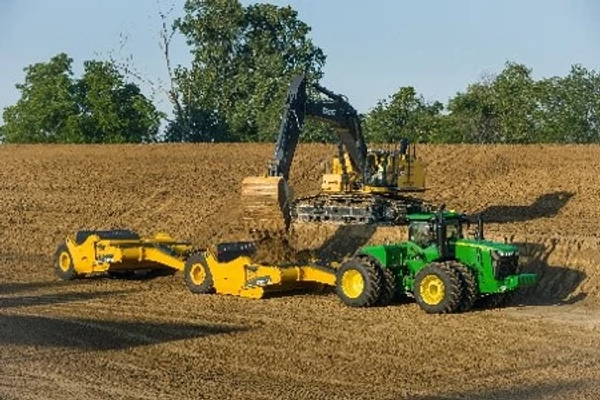

Top-Loading John Deere Scrapers Increase Productivity for All Applications
John Deere scrapers are built to endure the intense impact of top-loading, with a swept-back ejector wall design that improves bowl access and heavily shielded hydraulics for protection. To prevent hydraulic damage during loading, always ensure the scraper blade is lowered and resting on the ground.
Specifications
| Struck Capacity | 14 cu yd |
| Struck Capacity | 10.7 m³ |
| Heaped Capacity | 21.5 cu yd |
| Heaped Capacity | 16.4 m³ |
| Bowl Length | 8.83 ft |
| Bowl Length | 2.69 m |
| Bowl Width | 12 ft |
| Bowl Width | 3.66 m |
| Bowl Height | 3.83 ft |
| Bowl Height | 1.17 m |
| Approximate Shipping Weight | 25300 lb. |
| Approximate Shipping Weight | 11475 kg |
| Tongue | 28 % |
| Wheels | 72 % |
| Number Of Tires Per Scraper | 4 |
| Tire Size - Standard | 23.5x25 |
| Tire Size - Option 1 | 26.5x25 |
| Minimum Horsepower | 450 hp |
| Minimum Horsepower | 335.6 kW |
| Maximum Horsepower | 575+ hp |
| Maximum Horsepower | 428.9+ kW |
| Two Rows Of Blade Bolts | Standard |
| 6-in. Bolt-Hole Spacing | Standard |
| Straight Blade Configuration | Standard, 3 piece blades |
| Drop Center Configuration | Optional |
| Teeth Configuration | Optional |
| Adjustable Router Bits | Standard |
| Size Of Lines And Hoses | 0.75 in. |
| Size Of Lines And Hoses | 1.91 cm |
| Tandem Lines | Standard |
| Minimum Flow Required | 25 gpm |
| Minimum Flow Required | 94.6 L/min |
| Minimum Pressure Required | 2500 psi |
| Minimum Pressure Required | 172.4 bar |
| GPS/Laser Adaptable | Yes |
| Direct Loading | Yes |
| Top Loading | Yes |
| Push Loading | Not approved |
| Autoload | Yes |
| Hitch Type | Yoke |
| Special Tractor Drawbar Required | Yes |
| Full Warranty | Standard |
| Extended Warranty | Optional |
| Yoke-Type Drawbars | Optional |
| Quick-Attach Drawbars | Optional |
| Drawbar Hitch Adapters | Optional |
| Scraper-To-Scraper Quick-Attach | Factory installed only |
| Rear Bumper | Optional |
| Laser Receiver Bracket | Optional |
